0.91 inch Blue OLED Display Module

0.91 inch Blue OLED Display Module

This 0.91 inch Blue OLED Display Module has a resolution of 128x32 pixels. They are much thinner than LCD displays with good brightness and produce more accurate and true colors. This OLED Display Module is very compact and will enhance your Arduino project's user interface experience. This is an I2C OLED display, The I2C (also known as IIC) serial interface is used to connect this display to Arduino.

OLEDs are the future of displays because they have some of the most significant advantages over both conventional display technologies, LCDs and LEDs. The most appealing aspect of using OLED displays is that they do not require a backlight like conventional LCD/LED screens. Electroluminescence (EL) is a property of organic materials that causes them to "glow" when stimulated by a current or an electric field. The most energy-efficient displays ever!!!

When powered by a DC 2.8V supply, the 0.91 inch 128x32 Blue OLED Display Module produces White text on a Blue background with excellent contrast. The OLED Display Modules have a very wide viewing angle as well.

If you want to use this OLED display module in your Arduino project, for that you will need few essential components like

• Jumper wires
• Breadboard
• Batteries or power supply

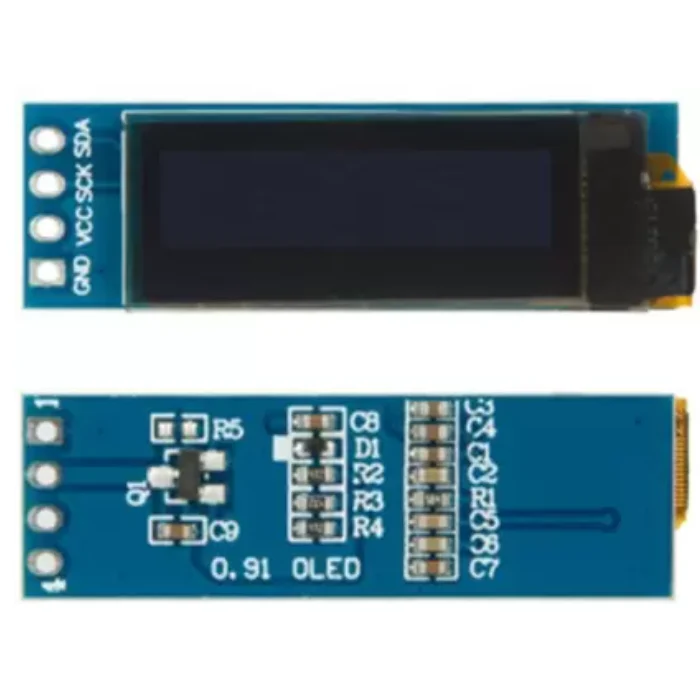

Pin Description:

• GND: Power ground
• VCC: Power positive
• SCL: Clock Line
• SDA: Data Line

Features:

• No need of the backlight
• The display is self-illuminating
• Power requirement is low
• They are offering the large viewing angle
• Better performance characteristics than traditional LCD and LED displays.

Check out our wide range of collection of OLED display modules which are reliable, durable, and top-performing displays every time.
