3.5in TFT LCD Shield for Arduino
3.5in TFT LCD Shield for Arduino

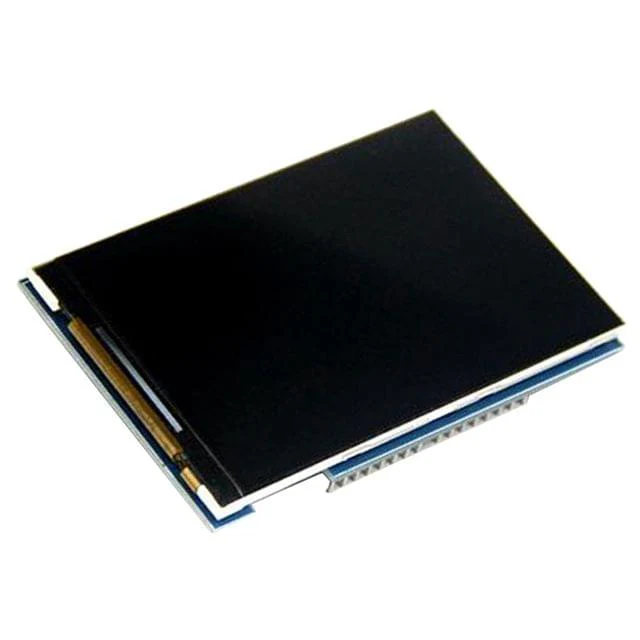

The 3.5" TFT LCD Touch Display Shield for Arduino has been fully assembled, tested, and is ready to use. Install the touch display without any wiring or soldering! Simply plug it in and load a library; you'll be up and running in less than 10 minutes! It works best with any traditional Arduino ATMEGA328 board. So add a beautiful touchscreen display shield with a built-in microSD card connection to your Arduino project. This TFT display is large (3.5?? diagonal), bright (4 white LED backlights), and colorful (262,000 different shades)!
The TFT display has 480x320 pixels and individual pixel control. It has significantly higher resolution than a black and white 128x64 display. As an added bonus, this TFT display includes a resistive touchscreen, allowing you to detect finger presses anywhere on the screen.
Precautions while using the 3.2in TFT LCD Display Shield
The control and driving circuit of TFT display modules is low voltage and FRIDA micro-power CMOS circuit, can be easily damaged by static, static damage is an irreparable damage, and sometimes human have hundreds of volts of high voltage static electricity, therefore, in handling, assembling and use should be extremely careful to prevent static electricity:
- Using soldering iron or power FRIDA tools must be well grounded and operation, make them without leakage.
- Do not use hand to touch the leads, circuit boards and metal boxes.
- Do not use a vacuum cleaner for cleaning, because it generates strong static electricity;
- When the air is dry, can also generate static electricity, therefore, workshop humidity shall be above RH60%.
- If it is necessary to direct contact it , should enable the human body in the same potential with the modules? ,or make human body be well grounded.
- Remove or back in the bags or move locations, also need to be careful to prevent static electricity.
- Don't replace or discard the original packing. Electrostatic damage or man-made damage is not within the scope of the warranty.

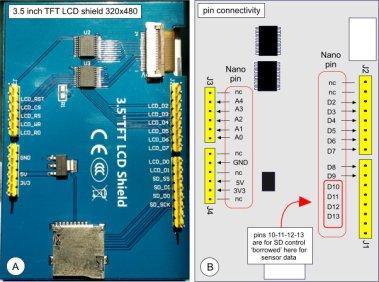

Pinout of 3.5in TFT LCD Shield for Arduino:
