4.3in Serial Interface Electronic Paper Display

4.3in Serial Interface Electronic Paper Display

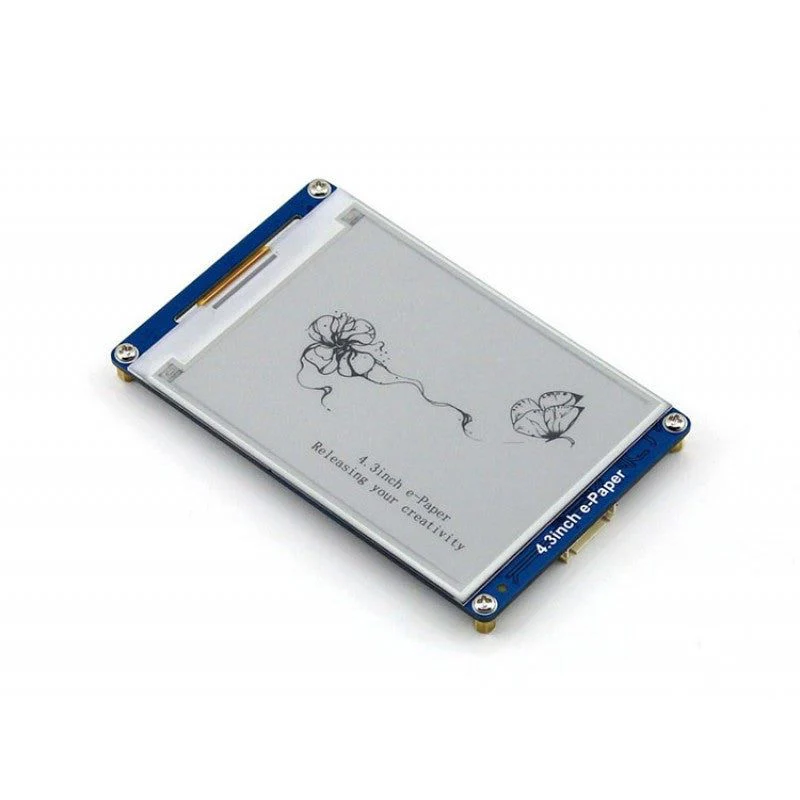

This E-Ink display module, 4.3inch, 800x600 resolution, with serial interface and embedded font libraries, is far more user friendly than its competitors. You don't need to understand the intricate underlying details of e-Paper or the specific algorithms for displaying graphics, texts, and images. All it requires is a serial interface, and all that matters is your imagination.

Features:

• Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
• Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
• Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
• 4 grey level displaying, 800×600 resolution
• Adjustable serial interface baud rate, 115200 by default when power up
• Powered from 3.3V to 5V, compatible with logic level
• Ultra low power consumption, sleeping current lower than 5mA
• Comes with host computer software, control it directly on your computer

Applications:

• e book
• Shopping mall POS
• Price label
• Industry instrument
