7Semi MiCS5524 CO, Alcohol and VOC MEMS Gas Sensor Breakout Board
7Semi MiCS5524 CO, Alcohol and VOC MEMS Gas Sensor Breakout Board
The 7Semi MiCS5524 CO, Alcohol and VOC MEMS Gas Sensor Breakout Board is a compact and high-precision gas sensing module designed for detecting carbon monoxide (CO), alcohol vapors, VOC gases, hydrogen (H2), methane (CH4), and ammonia (NH3). Powered by advanced MEMS gas sensor technology, this breakout board delivers reliable readings for air quality monitoring, gas leakage detection, and environmental sensing applications.
It supports both analog and I2C digital communication, making integration with 4.9V to 5.1V microcontrollers simple and efficient. Featuring a 4-pin 2mm JST connector and low-power design with enable/disable control, this CO and VOC gas sensor module is perfect for IoT projects, educational learning, and electronics experimentation where accurate gas detection and compact size are essential.
Features:
- Comprehensive Gas Detection: Detects CO (1-1000 ppm), ethanol (10-500 ppm), hydrogen (1-1000 ppm), and other volatile gases for a variety of applications.
- Advanced MEMS Technology: Provides great sensitivity and reliability for accurate gas concentration measurements.

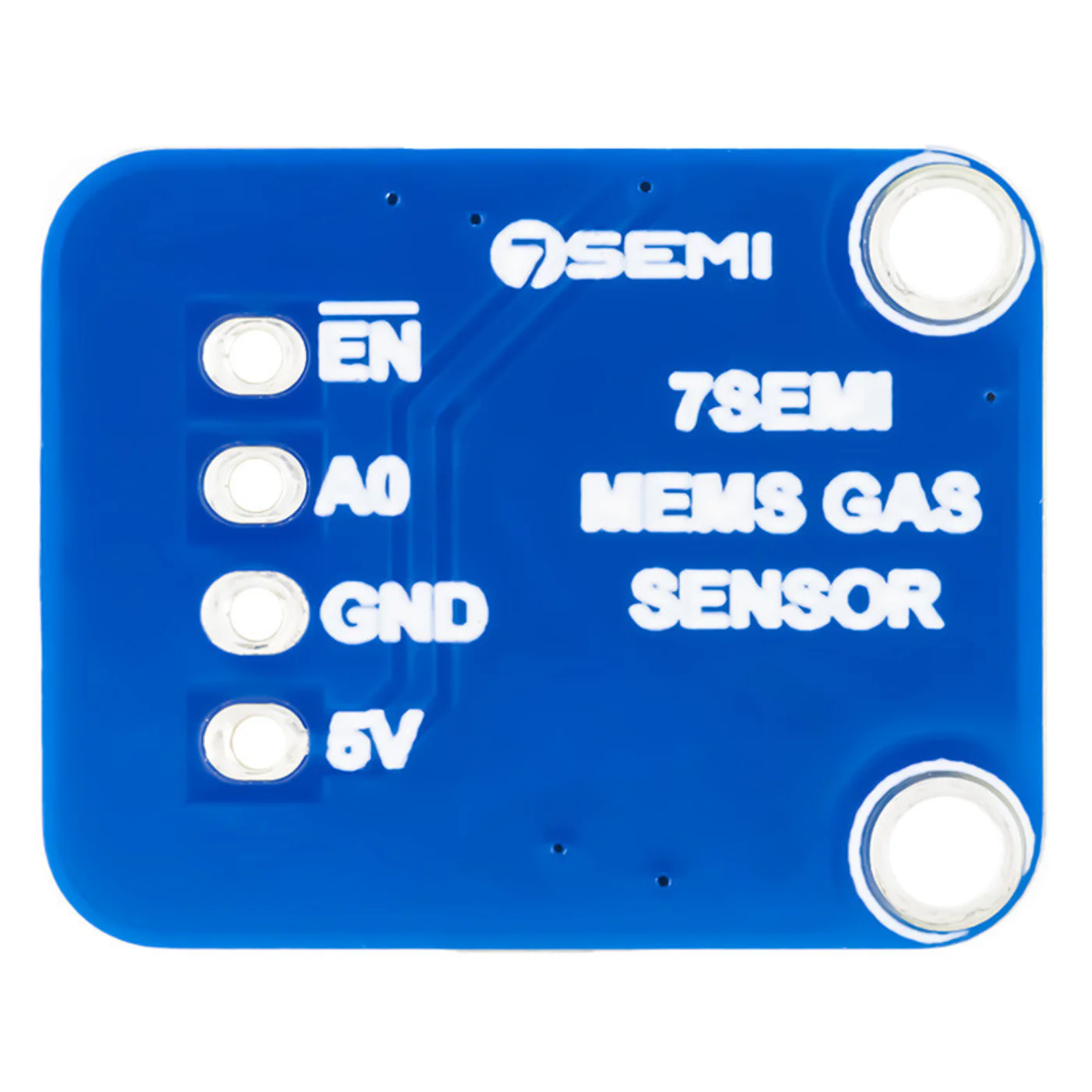

- Simple Connectivity: Includes a 4-pin 2mm pitch JST connector for convenient interaction with microcontrollers.
- Energy-Efficient Operation: The heater consumes little power, drawing about 25-35 mA, and includes an EN pin for power-saving management.
- Flexible Output Options: Supports both I2C and analog output, allowing for seamless integration into a variety of electrical systems.
- Preconfigured Data Support: Includes sample code with gas concentration conversion formulas to aid testing and installation.
Applications:
- Indoor air quality monitoring
- detection of natural gas leaks.
- Research and educational experiments
- Breath alcohol measurement.
- Early fire detection systems.
