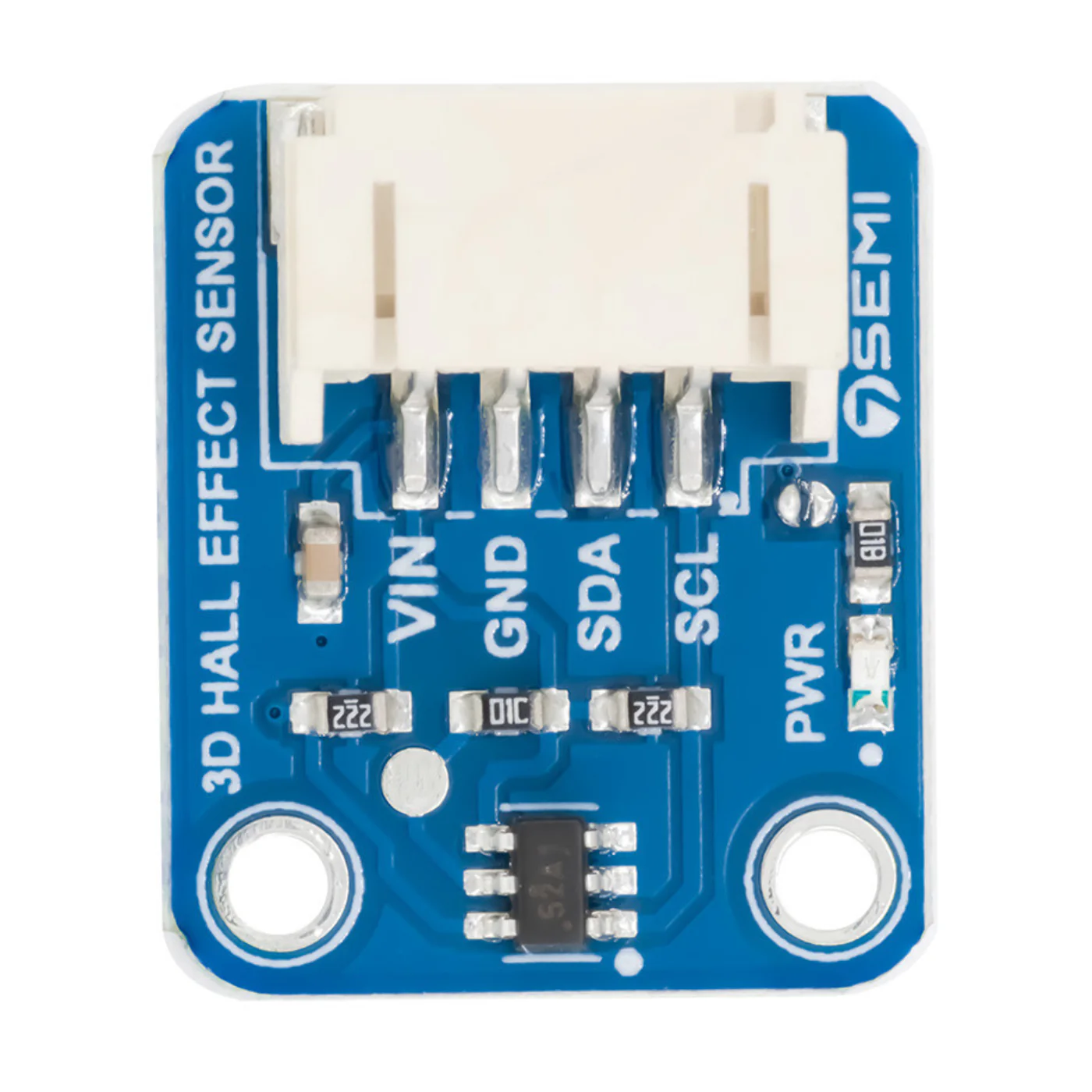

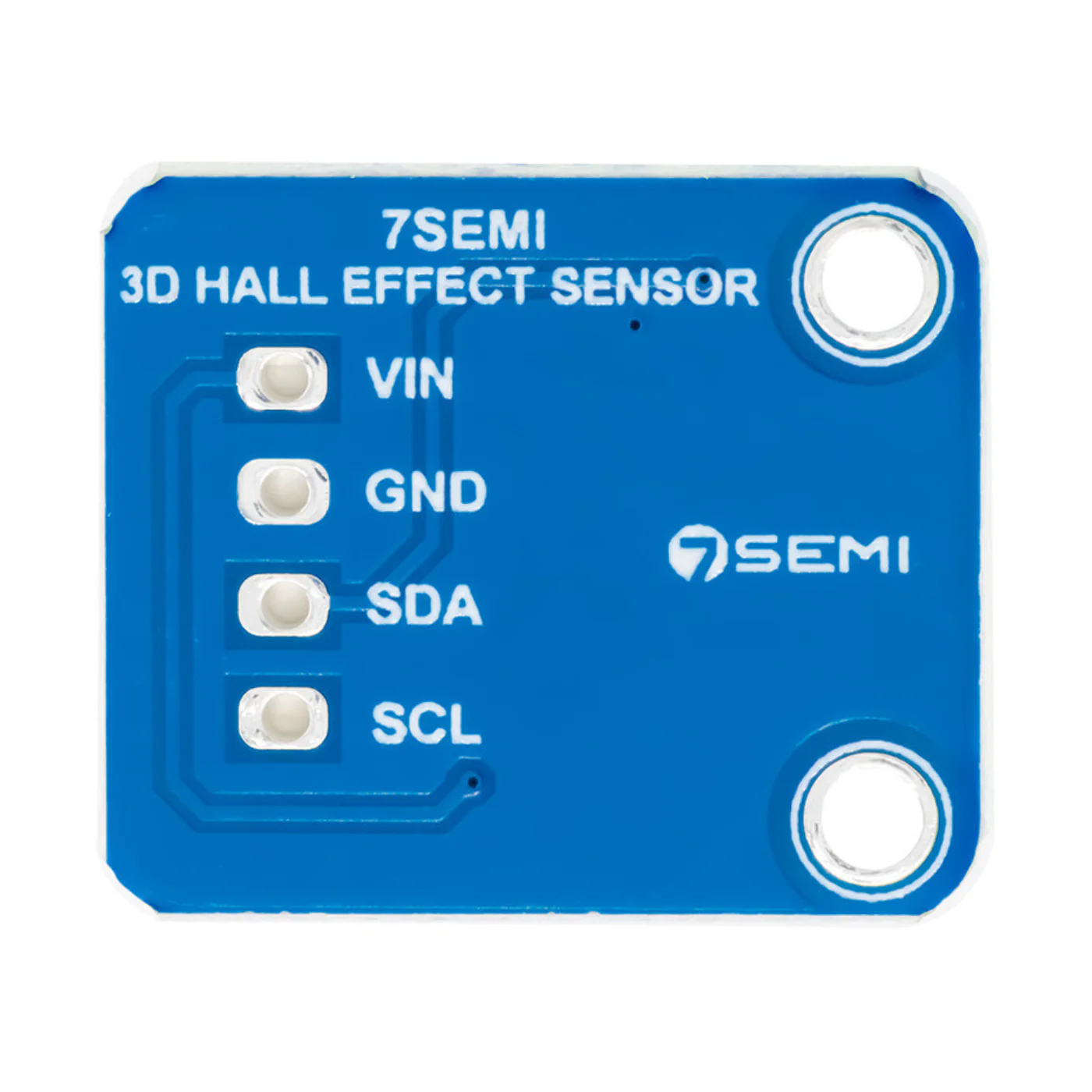

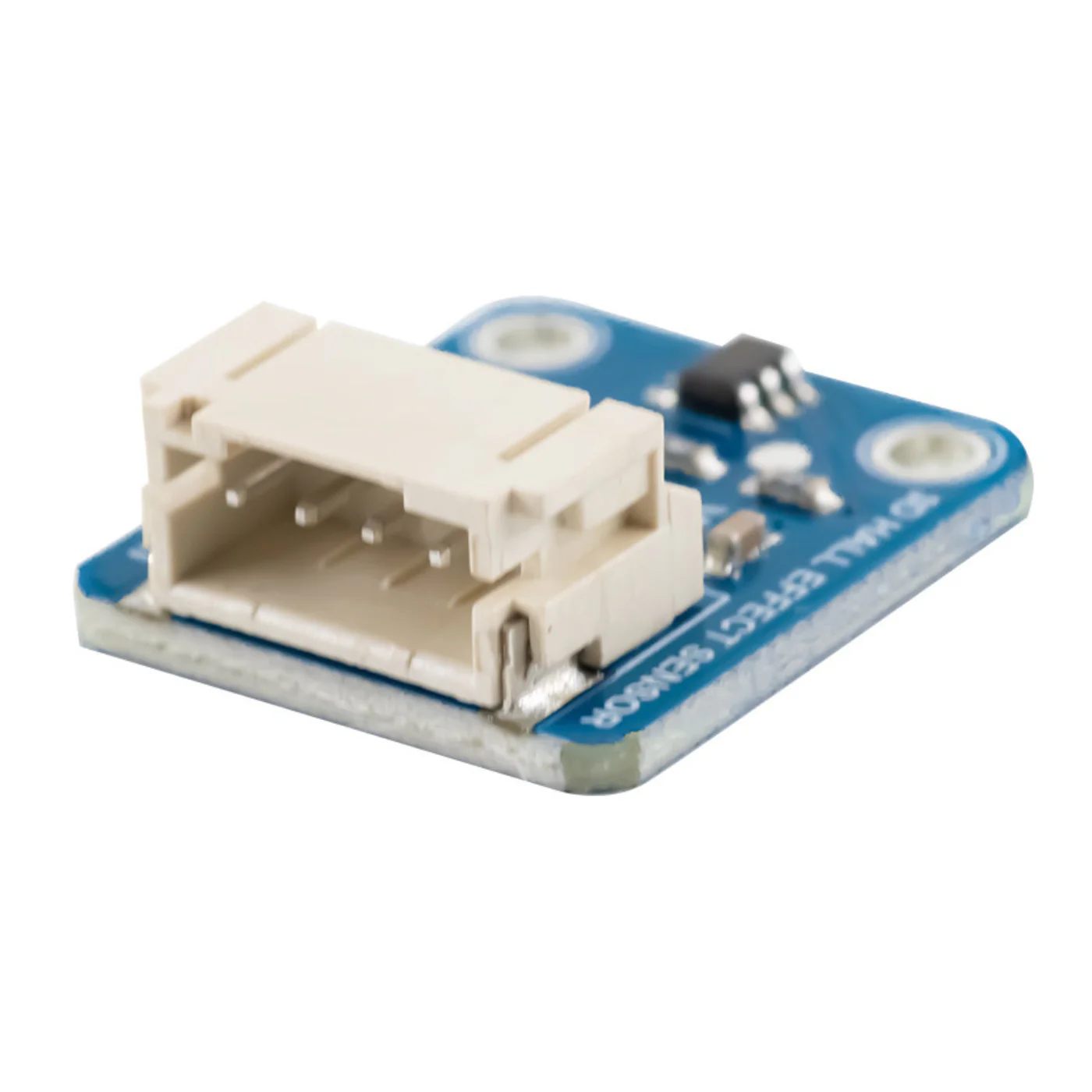

7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module
7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module
The 7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module is built around the high-performance TMAG5273 3D Hall-effect Sensor from Texas Instruments, designed to measure magnetic fields precisely across the X, Y, and Z axes. It supports a selectable linear magnetic sensing range of ±40 mT or ±80 mT, making it suitable for both low and moderate magnetic field applications.
With an I2C communication interface and a convenient 4-pin JST connector, this module ensures easy integration into embedded systems, robotics, and industrial sensing projects where accurate three-dimensional magnetic field measurement is essential.
Features:
Selectable Magnetic Range at X, Y, or Z axis:
- TMAG5273x1: ±40mT, ±80mT
- TMAG5273x2: ±133mT, ±266mT
Precision and efficiency:
- Interrupt signal based on user-defined magnetic and temperature criteria
- 5% typical sensitivity drift.
- Integrated angle CORDIC calculation with gain and offset adjustments.
- 20kSPS single-axis conversion rate.
- Configurable averaging of up to 32x for noise reduction.
Improved communication:
- I2C interface with CRC.
- Maximum 1-MHz I2C clock speed.
- Special I2C frame readings for increased throughput.
- I2C addresses are factory-programmed and can be modified by the user.
Enhanced durability:
- Integrated temperature correction for different magnet kinds.
- Built-in temperature sensor
- Supply voltage: 3.3 volts
- Operating temperature range: -40C to 125C.
Original: $2.69
-70%$2.69
$0.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module
The 7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module is built around the high-performance TMAG5273 3D Hall-effect Sensor from Texas Instruments, designed to measure magnetic fields precisely across the X, Y, and Z axes. It supports a selectable linear magnetic sensing range of ±40 mT or ±80 mT, making it suitable for both low and moderate magnetic field applications.
With an I2C communication interface and a convenient 4-pin JST connector, this module ensures easy integration into embedded systems, robotics, and industrial sensing projects where accurate three-dimensional magnetic field measurement is essential.
Features:
Selectable Magnetic Range at X, Y, or Z axis:
- TMAG5273x1: ±40mT, ±80mT
- TMAG5273x2: ±133mT, ±266mT
Precision and efficiency:
- Interrupt signal based on user-defined magnetic and temperature criteria
- 5% typical sensitivity drift.
- Integrated angle CORDIC calculation with gain and offset adjustments.
- 20kSPS single-axis conversion rate.
- Configurable averaging of up to 32x for noise reduction.
Improved communication:
- I2C interface with CRC.
- Maximum 1-MHz I2C clock speed.
- Special I2C frame readings for increased throughput.
- I2C addresses are factory-programmed and can be modified by the user.
Enhanced durability:
- Integrated temperature correction for different magnet kinds.
- Built-in temperature sensor
- Supply voltage: 3.3 volts
- Operating temperature range: -40C to 125C.
