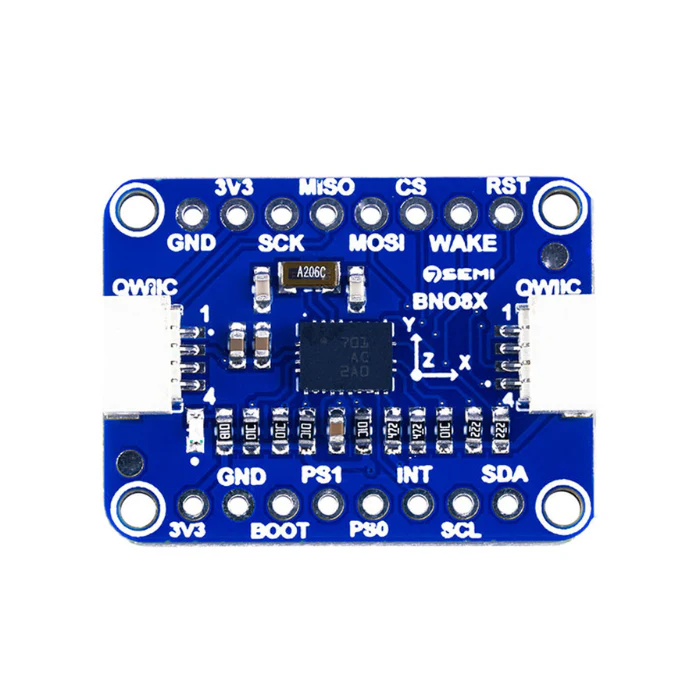

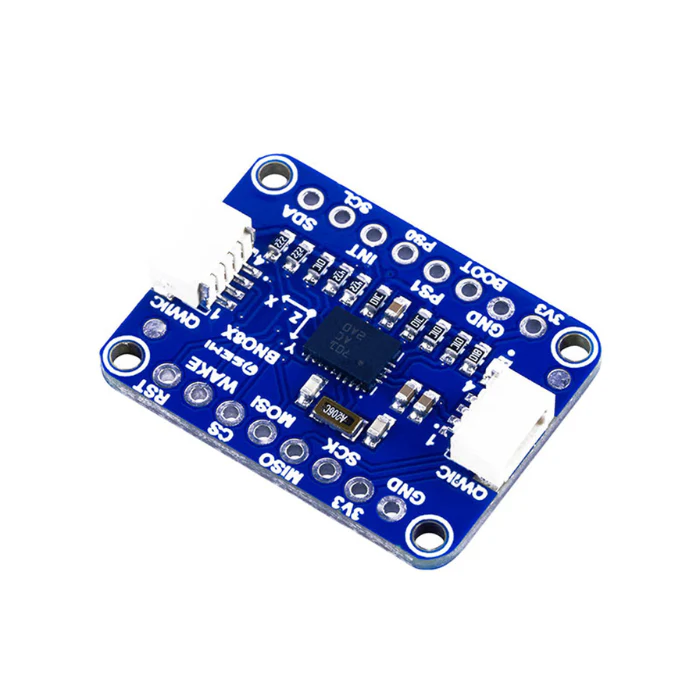

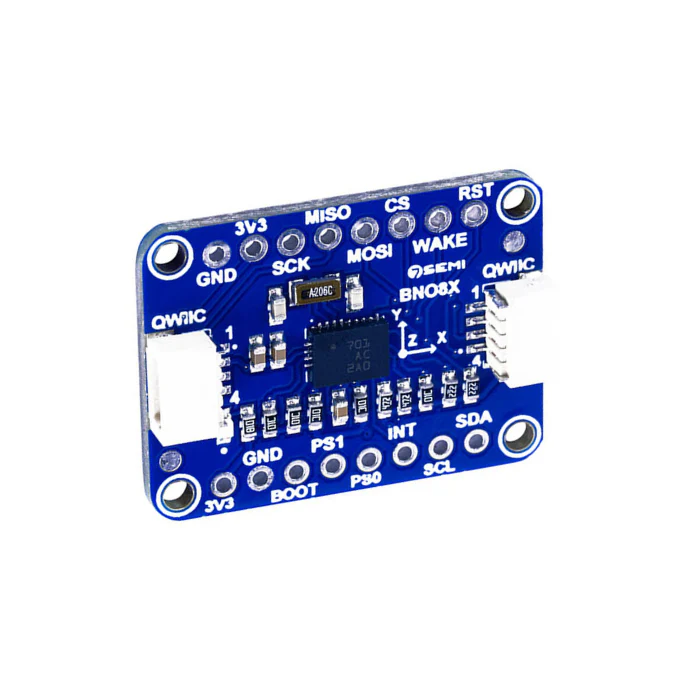

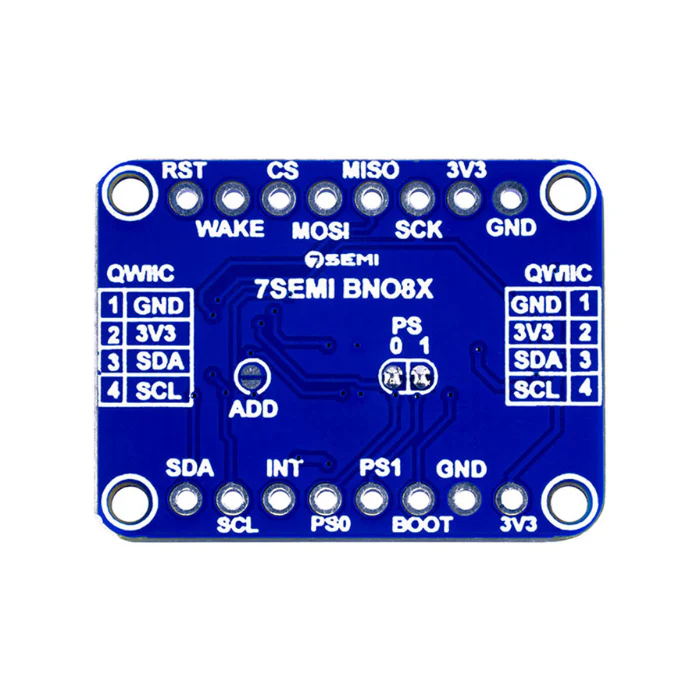

The 7Semi BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout is a compact and powerful sensor module that combines a 3-axis accelerometer, gyroscope, and magnetometer to provide full 9 degrees of freedom (9-DOF) motion tracking.

At its core is an ARM Cortex M0 processor running sophisticated sensor fusion algorithms, ensuring accurate and reliable orientation data. Designed for versatility, the board supports multiple communication protocols including I2C, SPI, and UART.

With onboard Qwiic connectors, integrating the breakout into your projects is seamless and solder-free, making it an excellent choice for developers working on robotics, AR/VR, drones, and other motion-sensitive applications.

Features:

• Multi-Axis Motion Sensing: Acceleration, angular velocity, and magnetic field vectors

• Rotation Quaternion Output: Accurate spatial orientation with four-point quaternions

• Enhanced Sensor Fusion: Optimized for low-latency AR/VR applications

• Raw & Calibrated Data Access: Base sensor reports for accelerometer, gyroscope, and magnetometer

• Motion & Activity Detection: Detects motion, taps, steps, shakes, and activity classification

• 3.3V Regulated Input: Onboard voltage regulator for stable operation

• Qwiic/Stemma QT Connectors: Plug-and-play, solder-free connectivity

• Compact Breakout Design: Breadboard-compatible and durable PCB

• Software Support: Compatible with CircuitPython, Arduino, and UART-RVC mode for easy data access.
