Ethernet LAN Module ENC28J60

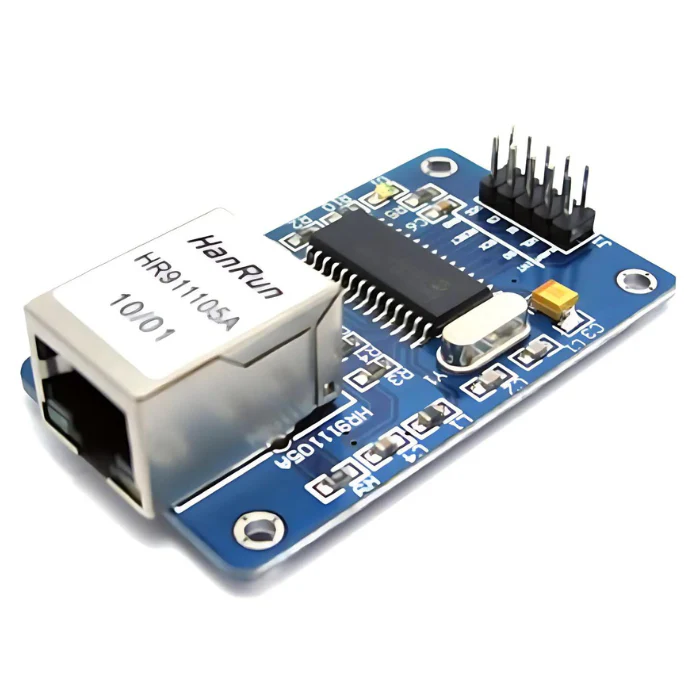

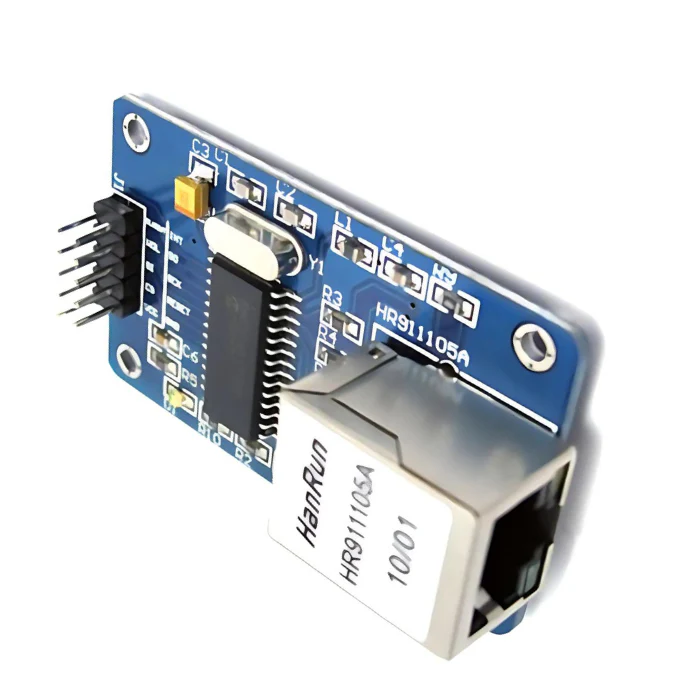

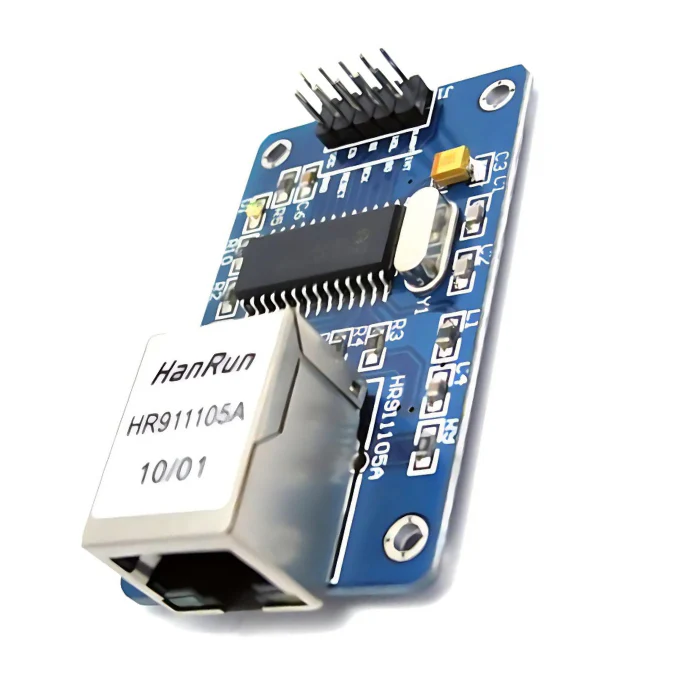

ENC28J60 Ethernet LAN Module
Want to connect your project to the internet? The ENC28J60 Ethernet LAN Module makes it simple! This small module uses the Microchip ENC28J60 Ethernet Controller and connects to your microcontroller through SPI. It’s easy to set up and gives you fast, reliable internet speeds.
If you've used the Arduino Ethernet Shield V1.0 before, you'll find this module works similarly and can connect 10 wires, and you're good to go. It's a compact, handy solution for getting your projects online quickly!
This ENC28J60 Ethernet LAN Module is best for Raspberry, Arduino, IoT, & other microcontroller projects.
7 major functional blocks of ENC28J60:
- An SPI interface for communication with the host controller.
- Control registers are used to manage and monitor the module.
- A dual-port RAM buffer for received and transmitted data packets.
- An arbiter to manage access to the RAM buffer from various blocks.
- A bus interface that interprets data and commands via SPI.
- The MAC (Medium Access Control) module for IEEE 802.3 compliant logic.
- The PHY (Physical Layer) module for encoding and decoding analog signals on the twisted-pair interface.
Original: $3.56
-70%$3.56
$1.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ENC28J60 Ethernet LAN Module
Want to connect your project to the internet? The ENC28J60 Ethernet LAN Module makes it simple! This small module uses the Microchip ENC28J60 Ethernet Controller and connects to your microcontroller through SPI. It’s easy to set up and gives you fast, reliable internet speeds.
If you've used the Arduino Ethernet Shield V1.0 before, you'll find this module works similarly and can connect 10 wires, and you're good to go. It's a compact, handy solution for getting your projects online quickly!
This ENC28J60 Ethernet LAN Module is best for Raspberry, Arduino, IoT, & other microcontroller projects.
7 major functional blocks of ENC28J60:
- An SPI interface for communication with the host controller.
- Control registers are used to manage and monitor the module.
- A dual-port RAM buffer for received and transmitted data packets.
- An arbiter to manage access to the RAM buffer from various blocks.
- A bus interface that interprets data and commands via SPI.
- The MAC (Medium Access Control) module for IEEE 802.3 compliant logic.
- The PHY (Physical Layer) module for encoding and decoding analog signals on the twisted-pair interface.
