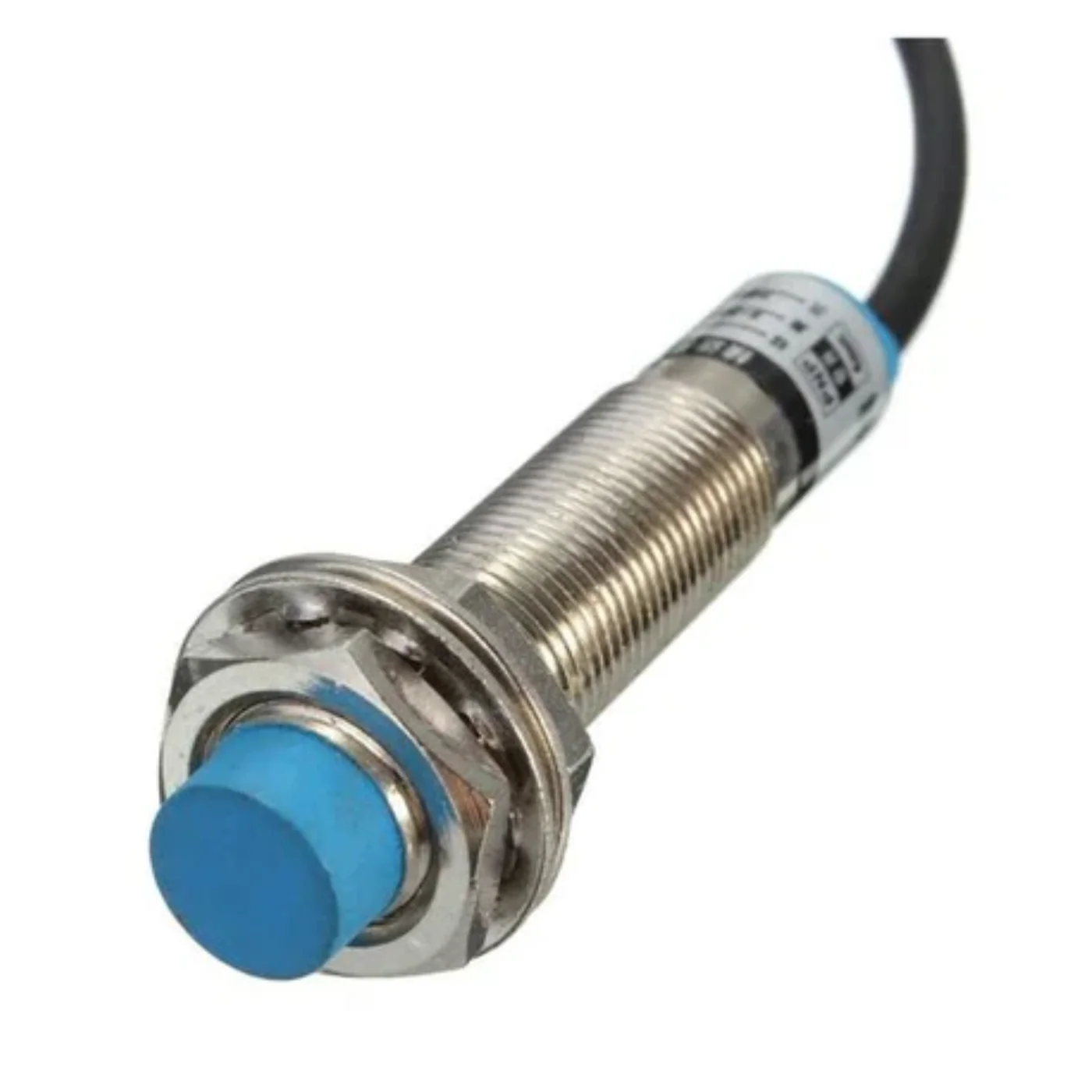

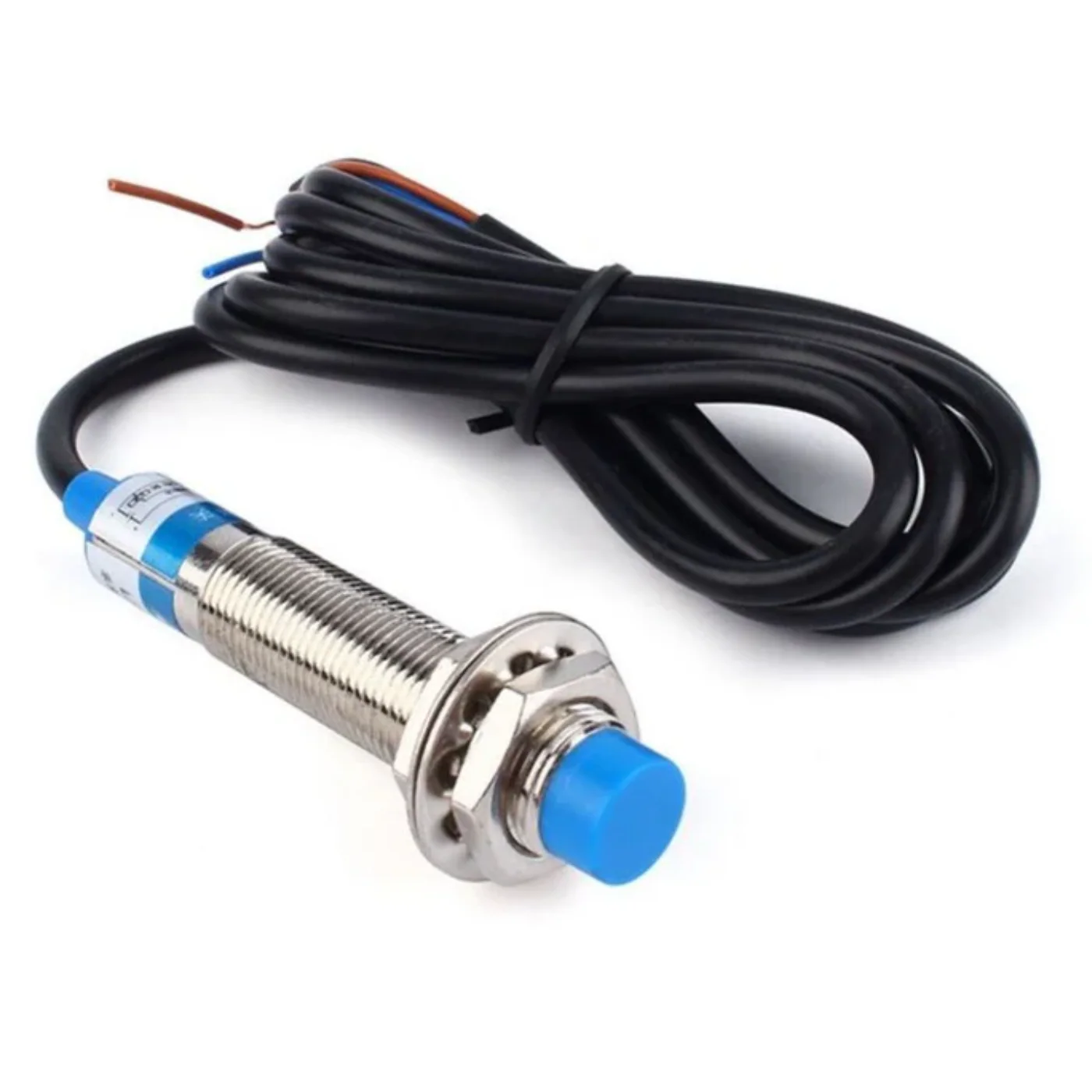

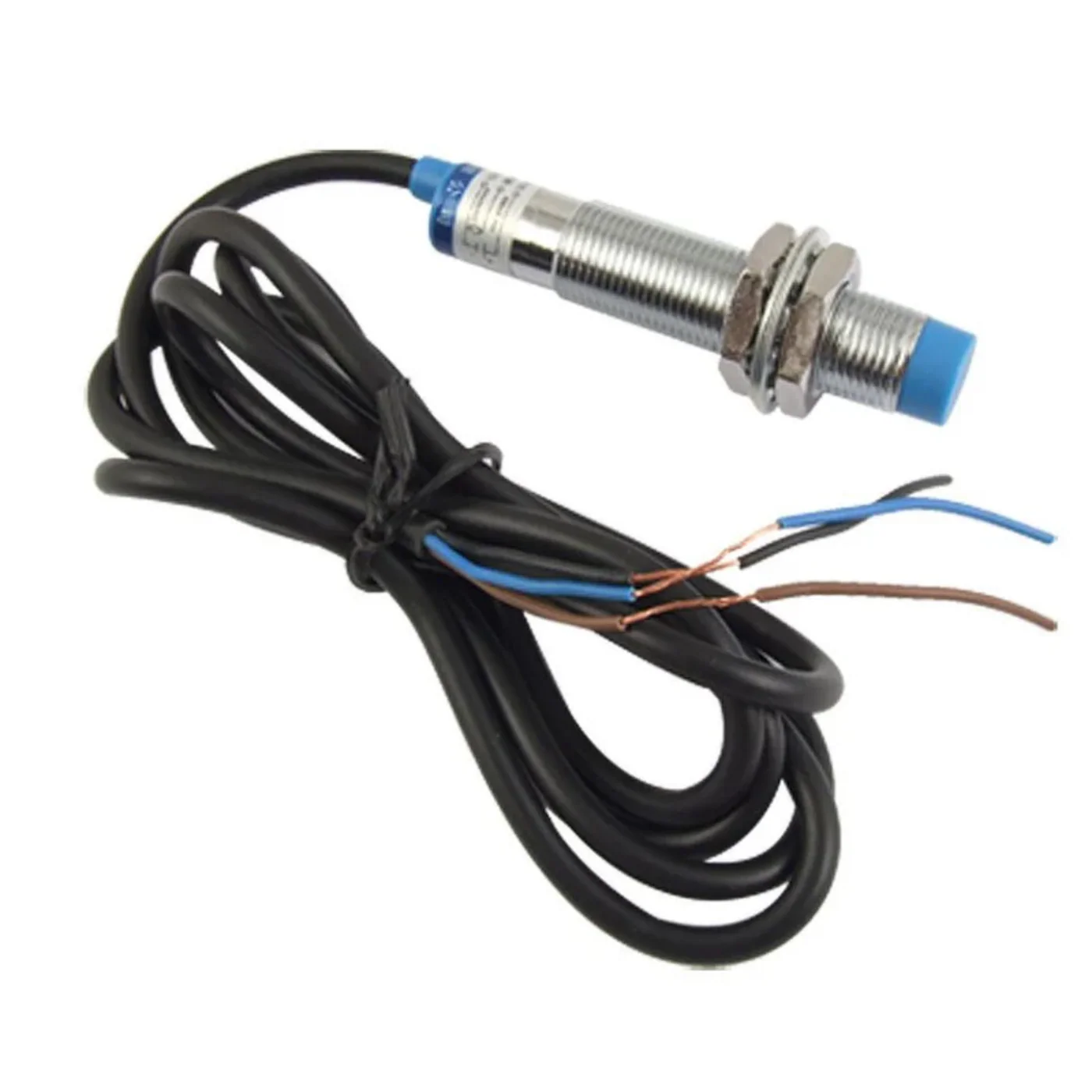

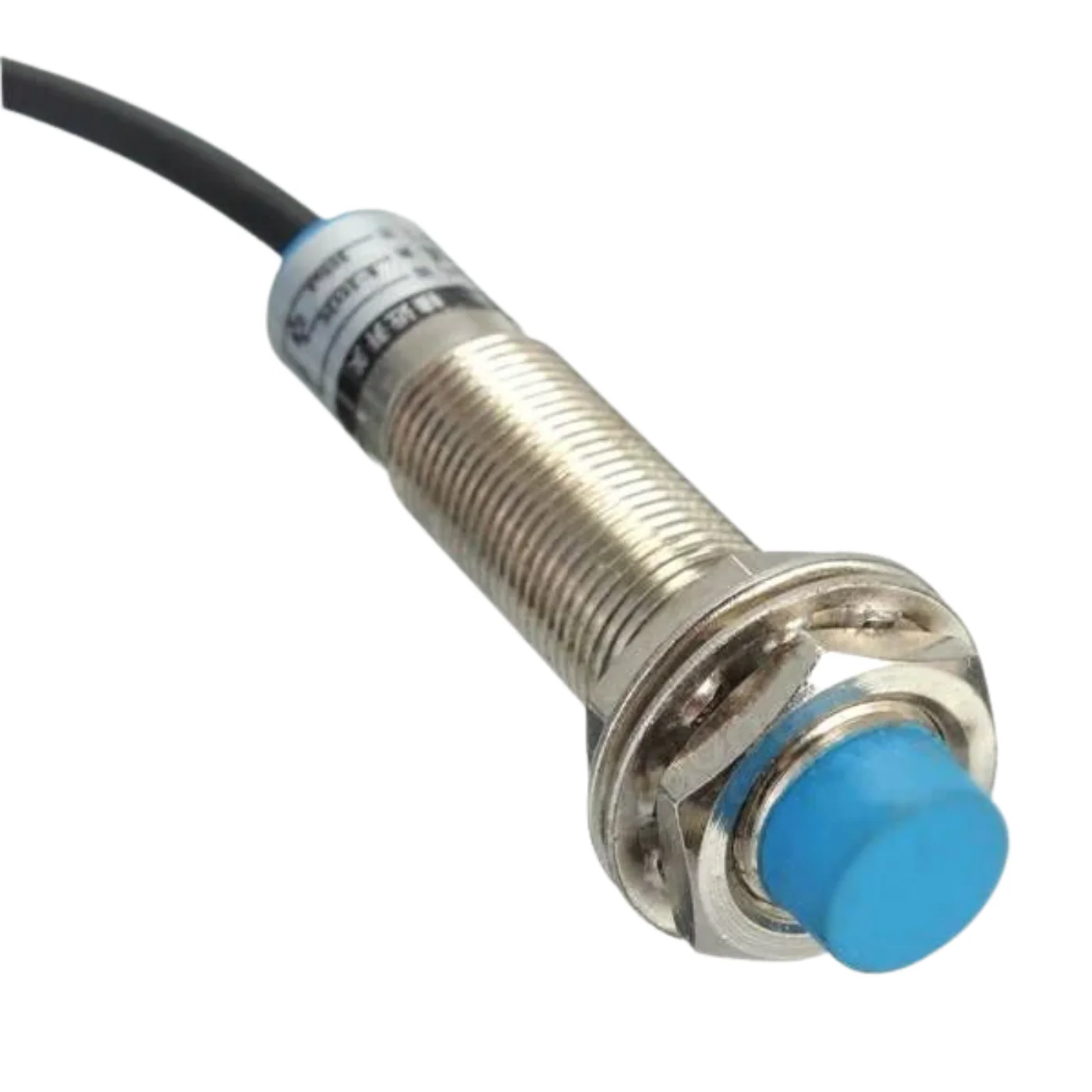

LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch
LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch
The LJ12A3-4-Z/BY inductive proximity sensor is a reliable and compact component designed for precise non-contact detection of metallic objects.
Operating on a DC 6-36V PNP configuration, this 4mm tube-type sensor provides accurate positioning and fast response, making it ideal for industrial automation applications.
When a metal object enters the sensing area, the inductive proximity sensor generates an Eddy Current that alters its magnetic field, allowing it to issue a quick electrical command without physical contact.
With features such as long service life, excellent anti-interference capability, and easy installation, the LJ12A3-4-Z/BY is well-suited for use in molds, precision machine tools, robotics, and other demanding environments where reliability and durability are crucial.
Features:
- A red LED indicates the proximity sensor's status.
- High repeatable positioning precision.
- High switching frequency.
- Wide voltage range.
- The whole length of the cylinder is 62mm.
- Thread length: 40mm.
- Outer (thread) diameter: M12.
- Antivibration, dust, water, and oil protection
- Reverse power protection, short circuit protection, and direct connection with PLC.
- Can replace tiny and limit switches.
Original: $1.65
-70%$1.65
$0.49Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch
The LJ12A3-4-Z/BY inductive proximity sensor is a reliable and compact component designed for precise non-contact detection of metallic objects.
Operating on a DC 6-36V PNP configuration, this 4mm tube-type sensor provides accurate positioning and fast response, making it ideal for industrial automation applications.
When a metal object enters the sensing area, the inductive proximity sensor generates an Eddy Current that alters its magnetic field, allowing it to issue a quick electrical command without physical contact.
With features such as long service life, excellent anti-interference capability, and easy installation, the LJ12A3-4-Z/BY is well-suited for use in molds, precision machine tools, robotics, and other demanding environments where reliability and durability are crucial.
Features:
- A red LED indicates the proximity sensor's status.
- High repeatable positioning precision.
- High switching frequency.
- Wide voltage range.
- The whole length of the cylinder is 62mm.
- Thread length: 40mm.
- Outer (thread) diameter: M12.
- Antivibration, dust, water, and oil protection
- Reverse power protection, short circuit protection, and direct connection with PLC.
- Can replace tiny and limit switches.
