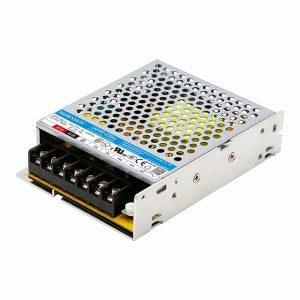

Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply

The LM100-23B36 is an enclosed AC/DC converter that provides a single output of 36V at up to 2.8A. It has an input voltage range of 85 to 305VAC or 120 to 430VDC, and an efficiency of up to 89.5%. The converter is also isolated from the input by 4000VAC, making it safe to use in hazardous environments.

Features:

• Single output of 36V at up to 2.8A
• Input voltage range of 85 to 305VAC or 120 to 430VDC
• Efficiency of up to 89.5%
• Isolated from the input by 4000VAC
• Suitable for use in hazardous environments

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
