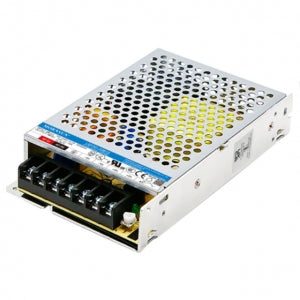

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

The LM150-22B36 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264 VAC and 180-370 VDC. This power supply is designed to deliver a regulated output voltage of 36 VDC and can provide a maximum power output of 154.8 watts. It offers high efficiency, with a rating of 88%, and provides a high level of isolation at 4000VAC. The LM150-22B36 is known for its narrow input voltage range and cost-effectiveness.

Features

• Wide input voltage range: The LM150-22B36 supports an input voltage range of 165-264 VAC and 180-370 VDC, making it suitable for various industrial applications.
• Regulated output voltage: It provides a stable and regulated output voltage of 36 VDC.
• High power output: The power supply can deliver a maximum power output of 154.8 watts.
• High efficiency: With an efficiency rating of 88%, the LM150-22B36 minimizes power losses and operates efficiently.
• High isolation: It offers a high level of isolation at 4000VAC, ensuring electrical safety.
• Cost-effective design: The LM150-22B36 is designed to provide a narrow input voltage range and is known for its cost-effectiveness.

check out : Mornsun LM150-22B48 AC/DC 150W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
