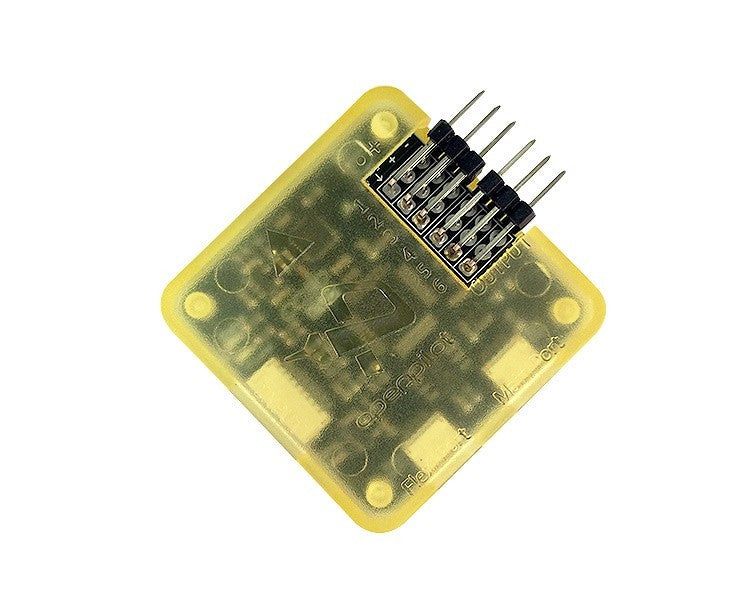

Openpilot CC3D Flight Controller
Openpilot CC3D Flight Controller
This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. The 3-axis MEMs technology is used for both gyro and accelerometer.
The Openpilot CC3D flight controller is integrated with a powerful STM32 bit microprocessor that runs at 90MIPs with 128Kb flash and 20Kb RAM. This flight controller features a high-performance 3 axis accelerometer and MEM gyrometer. The camera stabilization system supports up to 3axis camera mounts with stabilization and manual control from any of configured receivers.
Features of OpenPilot CC3D EVO Flight Controller
| Microcontroller | STM 32 bit microcontroller |
| Futaba S-BUS hardware support | Yes |
| Spektrum satellite receiver support | Yes |
| Onboard memory | 4 Mbit |
| PWM outputs | 10 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Openpilot CC3D Flight Controller
This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. The 3-axis MEMs technology is used for both gyro and accelerometer.
The Openpilot CC3D flight controller is integrated with a powerful STM32 bit microprocessor that runs at 90MIPs with 128Kb flash and 20Kb RAM. This flight controller features a high-performance 3 axis accelerometer and MEM gyrometer. The camera stabilization system supports up to 3axis camera mounts with stabilization and manual control from any of configured receivers.
Features of OpenPilot CC3D EVO Flight Controller
| Microcontroller | STM 32 bit microcontroller |
| Futaba S-BUS hardware support | Yes |
| Spektrum satellite receiver support | Yes |
| Onboard memory | 4 Mbit |
| PWM outputs | 10 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
