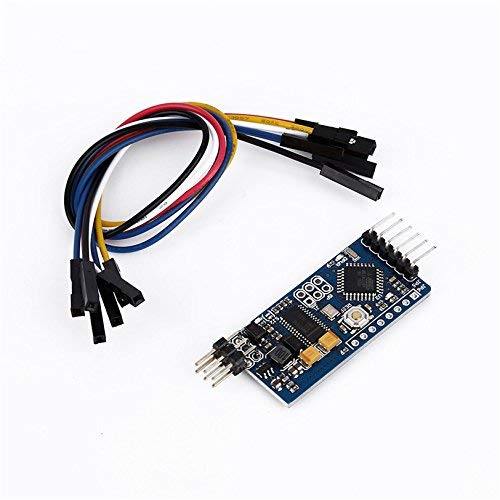

Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board
Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board
APM has an companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you’re using an on-board camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner. Instructions on connecting and using the MinimOSD board via the APM telemetry port are here. Important note: You cannot connect use the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD. Features: Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model Specifications: Material: Plastic Metal Item Name: MinimOSD MAVLink OSD APM APM2 Flight Control Board
Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model.
Features:
- Compatibility: Designed for APM 2.6 and APM 2.52 flight control boards.

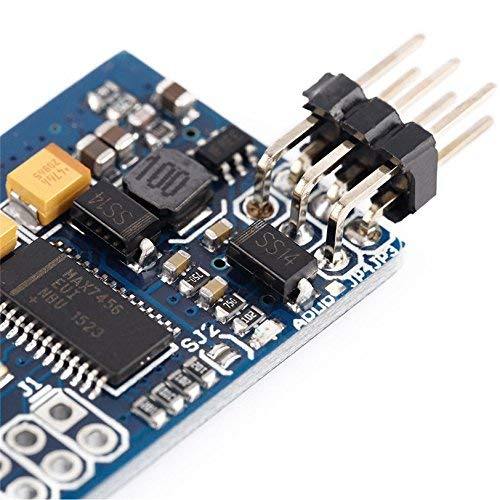

- Processor: Combines the ATmega328 microcontroller with the MAX7456 on-screen display (OSD) chip.
- Functionality: Provides real-time video data overlay, displaying important flight information directly on your FPV (First Person View) feed.
- Protocol: Supports MAVLink protocol for communication with the flight controller.
- Operating Voltage: 5V to 12V.
- Applications: Ideal for quadcopters, drones, and other DIY flight control projects.
Applications:
- DIY flight control projects
Original: $11.34
-70%$11.34
$3.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board
APM has an companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you’re using an on-board camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner. Instructions on connecting and using the MinimOSD board via the APM telemetry port are here. Important note: You cannot connect use the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD. Features: Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model Specifications: Material: Plastic Metal Item Name: MinimOSD MAVLink OSD APM APM2 Flight Control Board
Perfect combination of ATmega328 and MAX7456. Flight control OS functions Supports MAVLink protocol. Uses MAVLink OSD. Supports pirate APM2.52 APM 2.6 flight model.
Features:
- Compatibility: Designed for APM 2.6 and APM 2.52 flight control boards.
- Processor: Combines the ATmega328 microcontroller with the MAX7456 on-screen display (OSD) chip.
- Functionality: Provides real-time video data overlay, displaying important flight information directly on your FPV (First Person View) feed.
- Protocol: Supports MAVLink protocol for communication with the flight controller.
- Operating Voltage: 5V to 12V.
- Applications: Ideal for quadcopters, drones, and other DIY flight control projects.
Applications:
- DIY flight control projects
