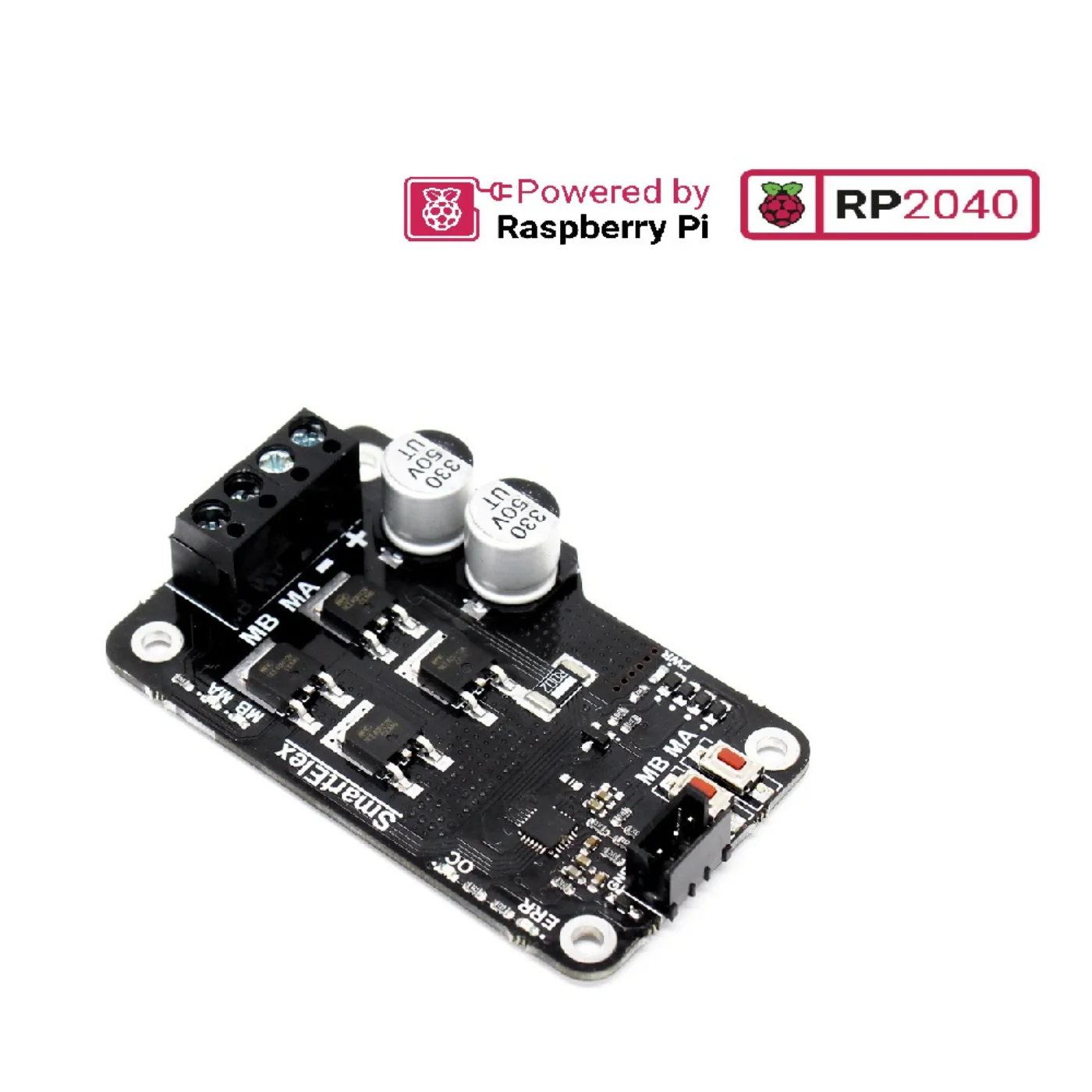

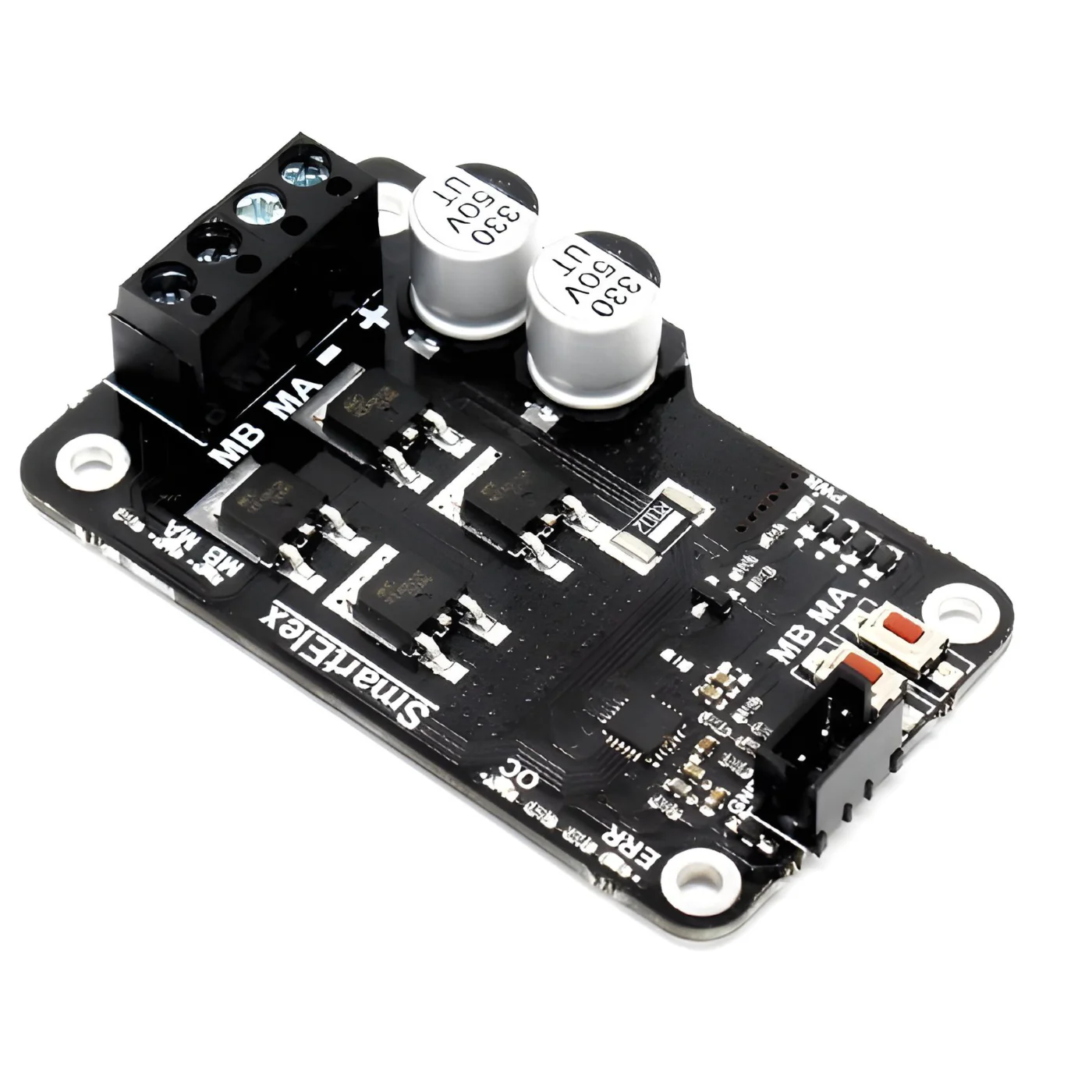

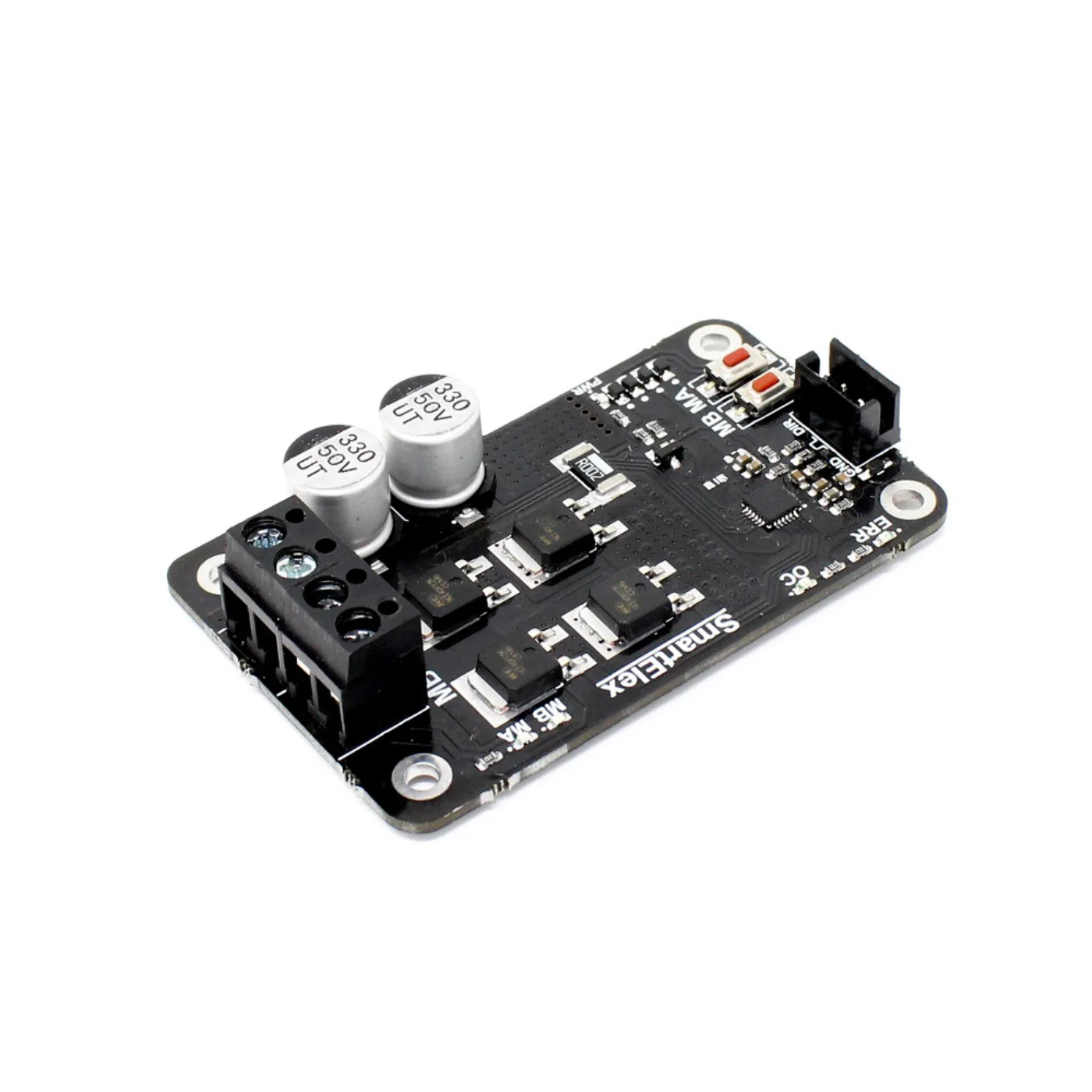

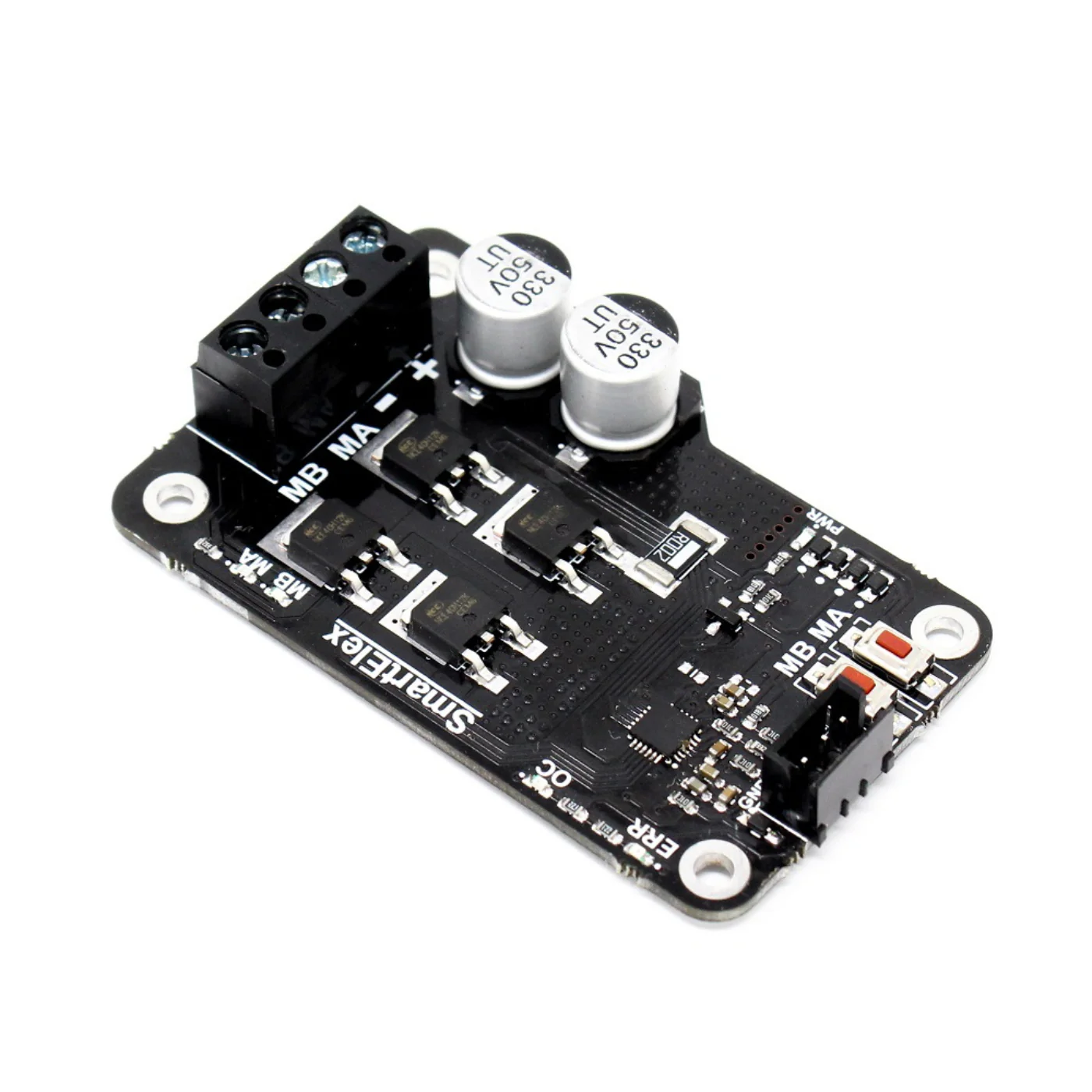

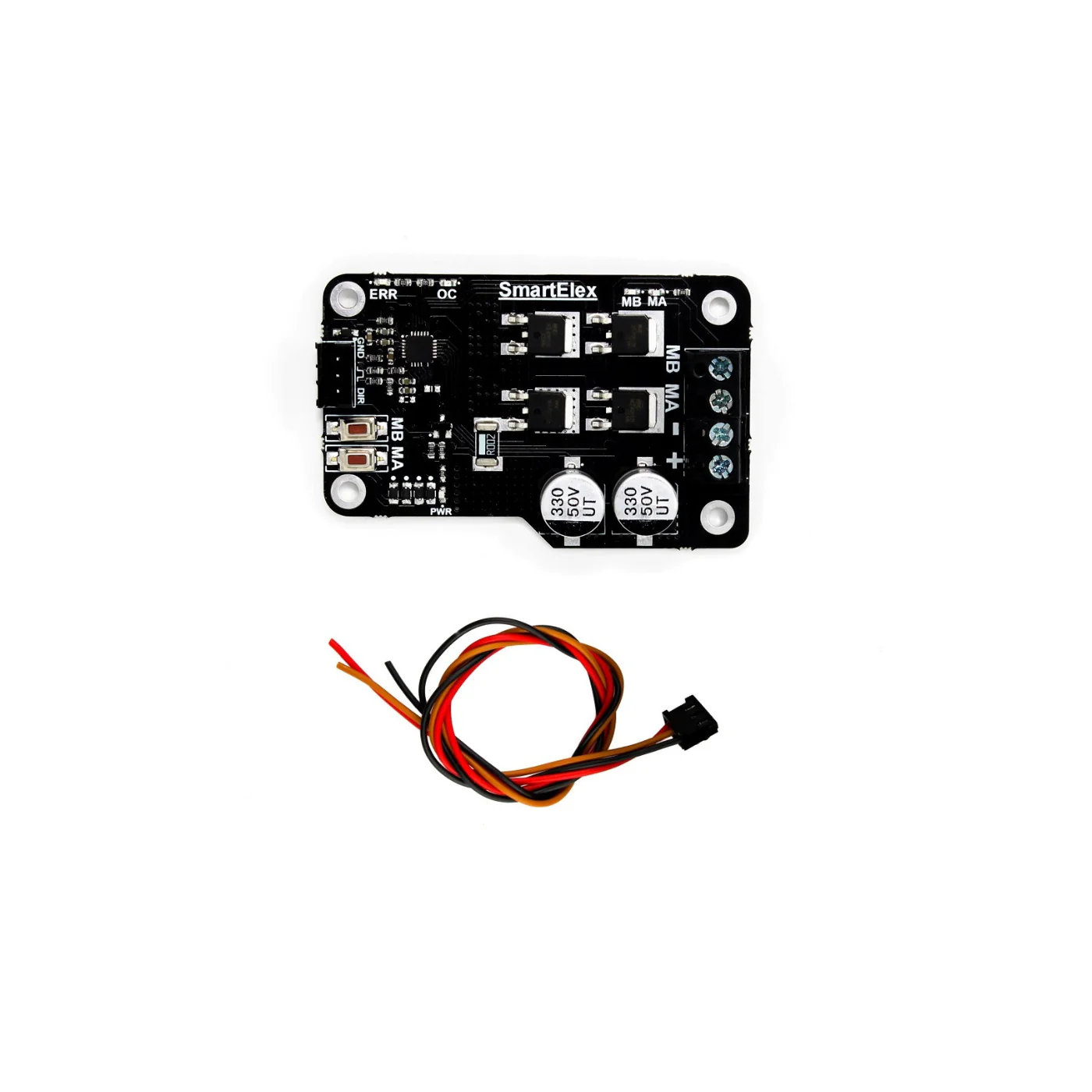

SmartElex 15S High-Power Single Channel PWM 15A DC Motor Driver
SmartElex 15S High-Power Single Channel PWM 15A DC Motor Driver
The SmartElex 15S DC motor driver is specifically crafted for managing single brushed DC motors in various fields like robotics, automation, and mechatronics. It allows for precise control over motor speed and direction by utilizing TTL PWM signals from any compatible microcontroller. With a broad operating voltage range of 6V to 30V and a continuous current rating of 15A (with a peak of 30A for up to 10 seconds), this DC motor controller offers robust and efficient performance, making it ideal for both light and heavy-duty motor tasks.
Equipped with four externally powered NMOS transistors, the SmartElex 15S guarantees smooth, high-frequency operation with PWM capabilities of up to 32kHz. It also comes with vital safety features like current limiting, thermal shutdown, and under-voltage lockout to safeguard both the motor and the controller. Designed for reliability and easy integration, the SmartElex 15S DC Motor Driver is an excellent choice for robotics enthusiasts, developers, and engineers seeking precise and trustworthy motor control.

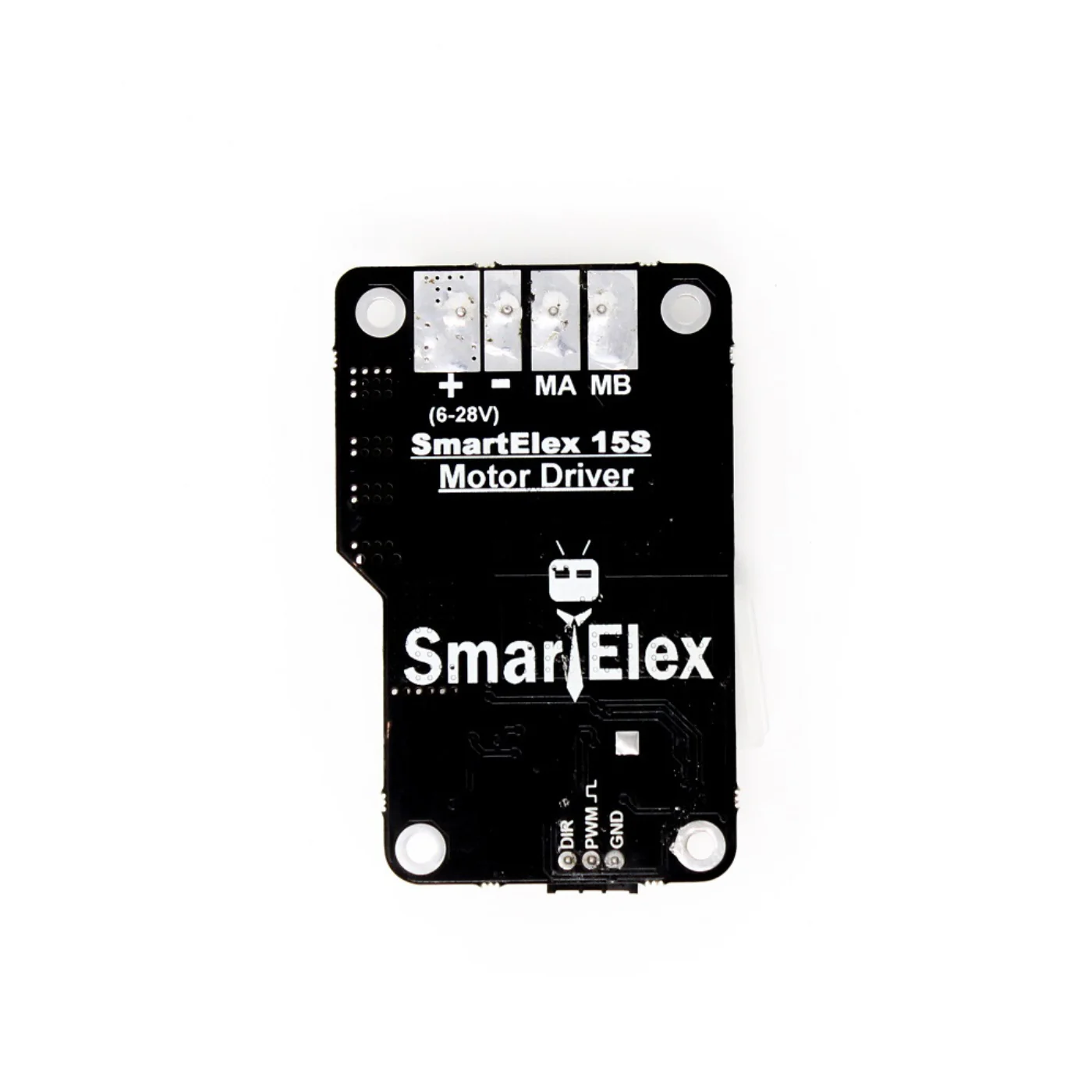

Pinout Diagram:
Features:
- Wide Operating Voltage Range: 6V to 30V for flexible use in various projects
- High Current Capacity: 15A continuous and 30A peak current for 10 seconds
- Single Brushed DC Motor Control: Enables bidirectional control with precision
- PWM Frequency Support: Operates up to 32kHz for smooth speed control
- TTL PWM Compatibility: Works with 3.3V and 5V logic level microcontrollers
- Built-In Protection: Includes 35A current limiting, thermal shutdown, and under-voltage lockout
- Efficient Design: Uses PWM and direction-controlled driving with four NMOS transistors
- Easy Integration: Simple interface for use in robotics, automation, and mechatronics applications
Original: $4.93
-70%$4.93
$1.48Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SmartElex 15S High-Power Single Channel PWM 15A DC Motor Driver
The SmartElex 15S DC motor driver is specifically crafted for managing single brushed DC motors in various fields like robotics, automation, and mechatronics. It allows for precise control over motor speed and direction by utilizing TTL PWM signals from any compatible microcontroller. With a broad operating voltage range of 6V to 30V and a continuous current rating of 15A (with a peak of 30A for up to 10 seconds), this DC motor controller offers robust and efficient performance, making it ideal for both light and heavy-duty motor tasks.
Equipped with four externally powered NMOS transistors, the SmartElex 15S guarantees smooth, high-frequency operation with PWM capabilities of up to 32kHz. It also comes with vital safety features like current limiting, thermal shutdown, and under-voltage lockout to safeguard both the motor and the controller. Designed for reliability and easy integration, the SmartElex 15S DC Motor Driver is an excellent choice for robotics enthusiasts, developers, and engineers seeking precise and trustworthy motor control.
Pinout Diagram:
Features:
- Wide Operating Voltage Range: 6V to 30V for flexible use in various projects
- High Current Capacity: 15A continuous and 30A peak current for 10 seconds
- Single Brushed DC Motor Control: Enables bidirectional control with precision
- PWM Frequency Support: Operates up to 32kHz for smooth speed control
- TTL PWM Compatibility: Works with 3.3V and 5V logic level microcontrollers
- Built-In Protection: Includes 35A current limiting, thermal shutdown, and under-voltage lockout
- Efficient Design: Uses PWM and direction-controlled driving with four NMOS transistors
- Easy Integration: Simple interface for use in robotics, automation, and mechatronics applications
