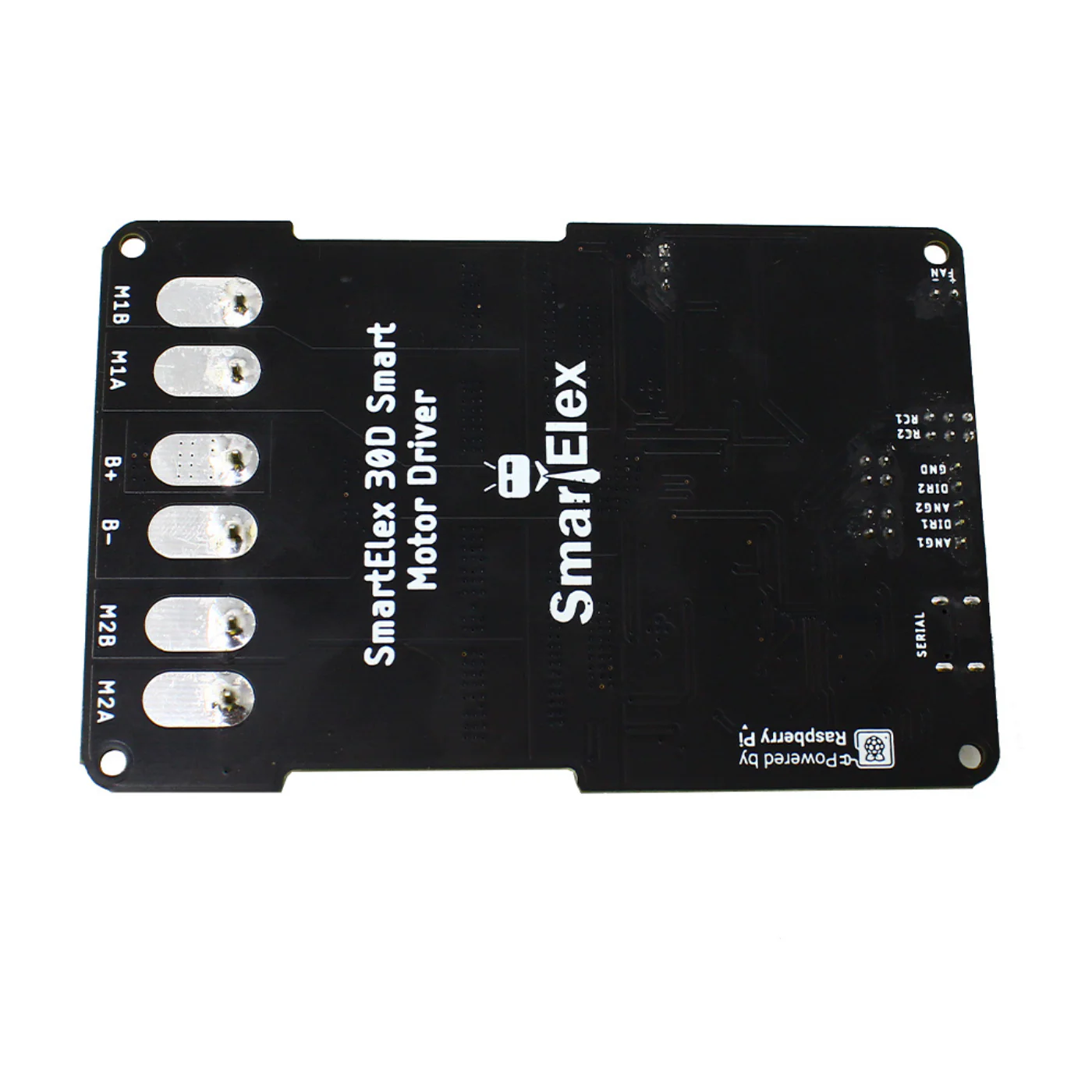

SmartElex 30D Dual Channel Motor Driver Powered by Raspberry Pi
SmartElex 30D Dual Channel Motor Driver Powered by Raspberry Pi
The SmartElex 30D is a powerful and intelligent dual channel motor driver engineered for demanding robotics and automation applications. Designed to deliver 30A continuous and up to 85A peak current per channel, this smart motor driver offers impressive performance and versatility. It supports multiple input modes including RC, analog, PWM, and TTL serial communication, allowing you to integrate it effortlessly into a wide range of control systems. The 30D also includes mixed and independent operating modes, making it ideal for applications like differential drive robots, motorized vehicles, and mechatronic systems.
What truly sets the SmartElex 30D apart is its smart control and protection features. With onboard microcontroller intelligence, it actively monitors temperature and current to prevent damage. If the board temperature exceeds 80°C, motor speed is automatically reduced until it cools down, ensuring safe and consistent operation. Its MOSFETs operate at a 16kHz switching frequency for quiet, efficient performance. Designed for durability, flexibility, and ease of use, this Raspberry Pi-powered driver is the perfect choice for anyone looking to build reliable, high-power robotic systems.
Features:
- High Power Output: 30A continuous and up to 85A peak current per channel (2 seconds)
- Wide Voltage Range: Supports motor voltage from 7V to 28V
- Smart Control System: Built-in microcontroller for intelligent temperature and current monitoring
- Multiple Input Modes: Compatible with RC, Analog, PWM, and Serial Packetized control
- Thermal Protection: Reduces speed at 80°C, resumes normal at 70°C, and shuts down at 100°C
- Overcurrent Protection: Prevents damage during high-load conditions
- Quiet Operation: 16kHz MOSFET switching ensures silent motor performance
- Manual Operation: Onboard push buttons for testing and manual control
Original: $38.05
-70%$38.05
$11.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SmartElex 30D Dual Channel Motor Driver Powered by Raspberry Pi
The SmartElex 30D is a powerful and intelligent dual channel motor driver engineered for demanding robotics and automation applications. Designed to deliver 30A continuous and up to 85A peak current per channel, this smart motor driver offers impressive performance and versatility. It supports multiple input modes including RC, analog, PWM, and TTL serial communication, allowing you to integrate it effortlessly into a wide range of control systems. The 30D also includes mixed and independent operating modes, making it ideal for applications like differential drive robots, motorized vehicles, and mechatronic systems.
What truly sets the SmartElex 30D apart is its smart control and protection features. With onboard microcontroller intelligence, it actively monitors temperature and current to prevent damage. If the board temperature exceeds 80°C, motor speed is automatically reduced until it cools down, ensuring safe and consistent operation. Its MOSFETs operate at a 16kHz switching frequency for quiet, efficient performance. Designed for durability, flexibility, and ease of use, this Raspberry Pi-powered driver is the perfect choice for anyone looking to build reliable, high-power robotic systems.
Features:
- High Power Output: 30A continuous and up to 85A peak current per channel (2 seconds)
- Wide Voltage Range: Supports motor voltage from 7V to 28V
- Smart Control System: Built-in microcontroller for intelligent temperature and current monitoring
- Multiple Input Modes: Compatible with RC, Analog, PWM, and Serial Packetized control
- Thermal Protection: Reduces speed at 80°C, resumes normal at 70°C, and shuts down at 100°C
- Overcurrent Protection: Prevents damage during high-load conditions
- Quiet Operation: 16kHz MOSFET switching ensures silent motor performance
- Manual Operation: Onboard push buttons for testing and manual control
