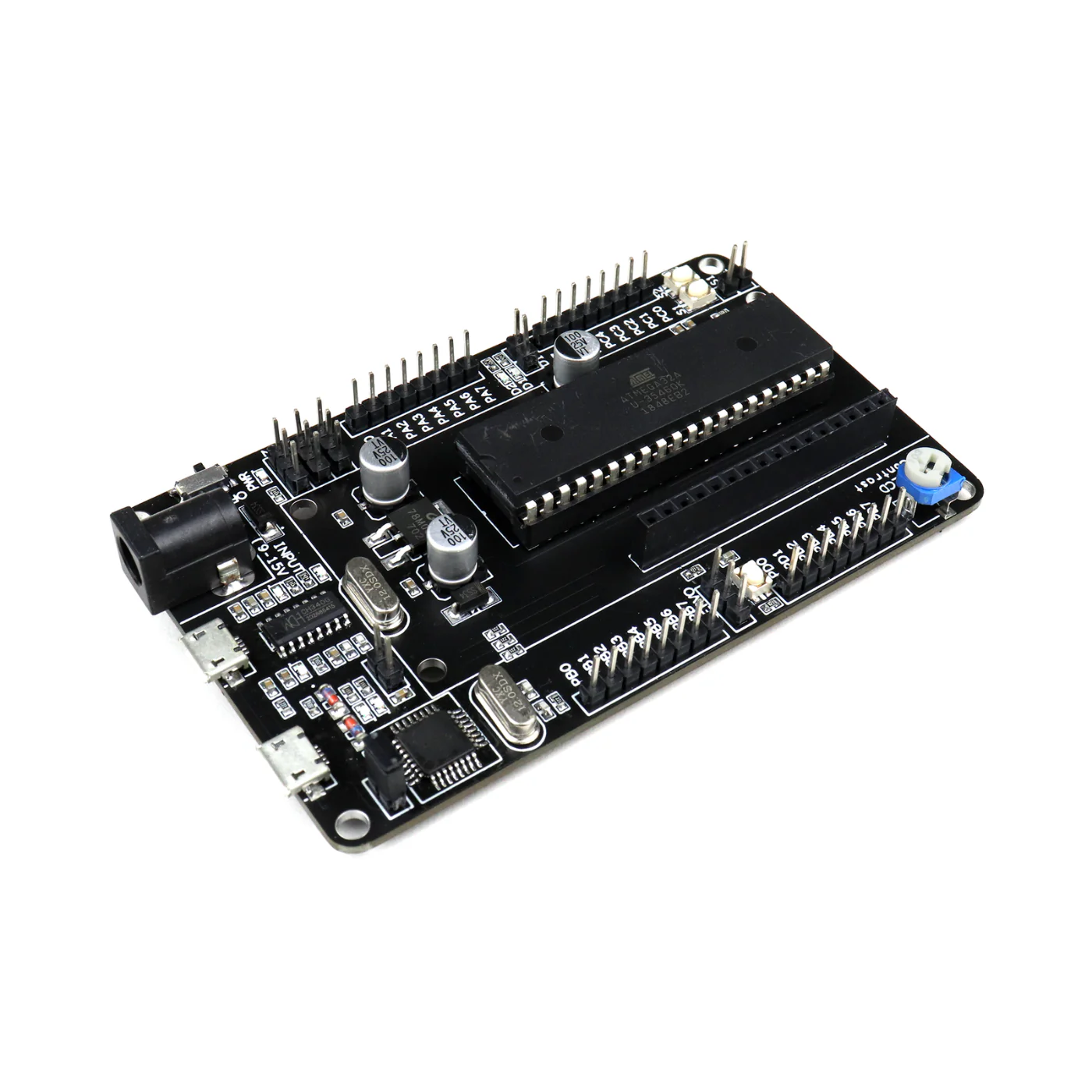

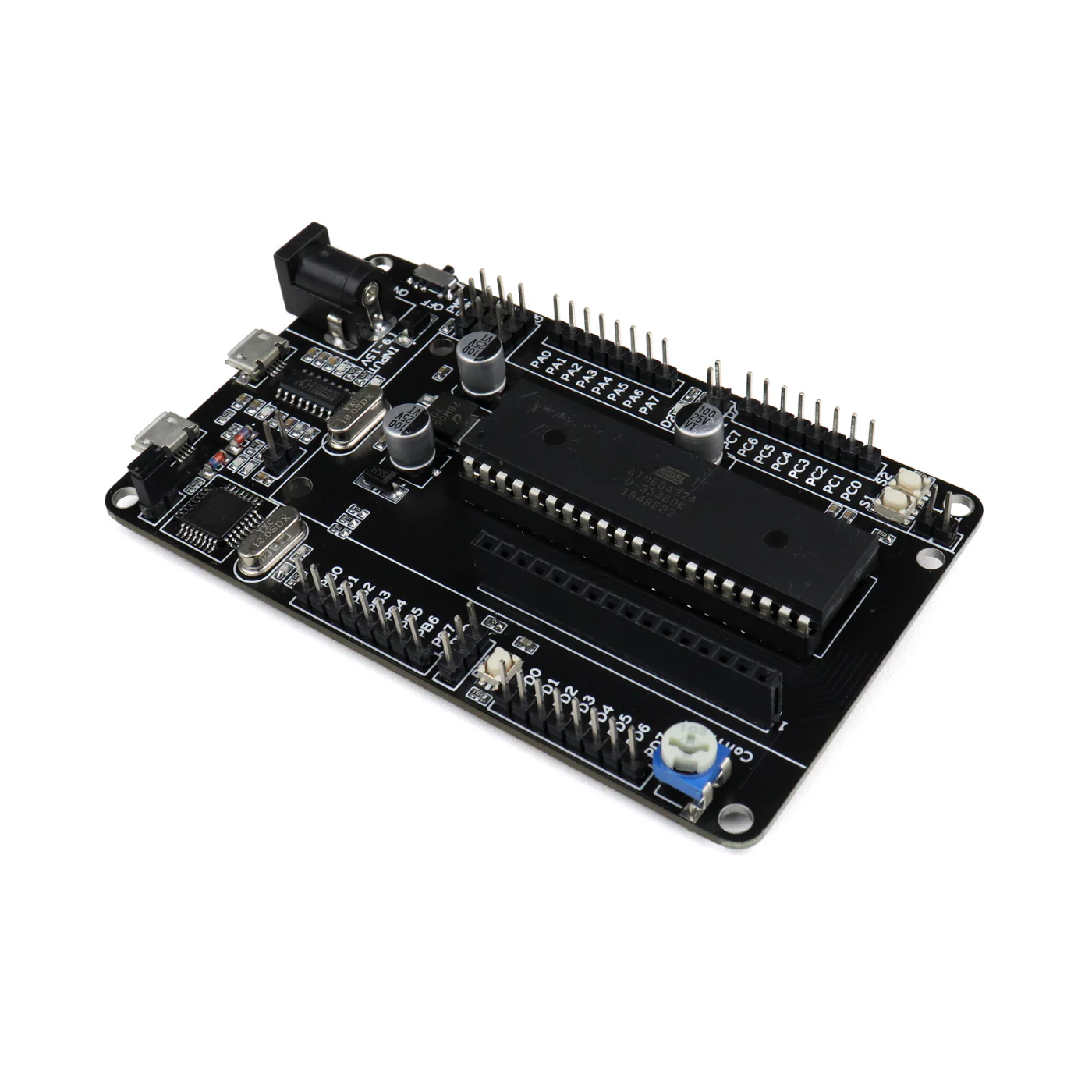

SmartElex ATmega32 Development Board – AVR Microcontroller with Onboard USB Programmer

SmartElex ATmega32 Development Board – AVR Microcontroller with Onboard USB Programmer

The SmartElex ATmega32 Development Board is a reliable and easy-to-use platform designed to help you explore and experiment with the powerful AVR ATmega32 microcontroller. It comes with an onboard USB programmer, power supply circuit, and serial communication support — making it perfect for students, hobbyists, and engineers working on embedded systems or microcontroller projects. With its clear pin labeling, onboard LEDs, switches, and LCD connector, this board simplifies learning and prototyping.

Built around the ATmega32 8-bit AVR architecture, the board delivers efficient performance and low power consumption, ideal for a wide range of applications like automation, robotics, and electronic prototyping. It can be powered via a DC plug-in jack or USB, and its onboard 5V regulator ensures stable operation. Whether you’re a beginner learning embedded programming or a professional developing real-time systems, this development board provides everything you need in one compact setup.

Pinout Diagram:

Features:

• Designed for ATmega32 8-bit AVR microcontroller (40-pin DIP package).

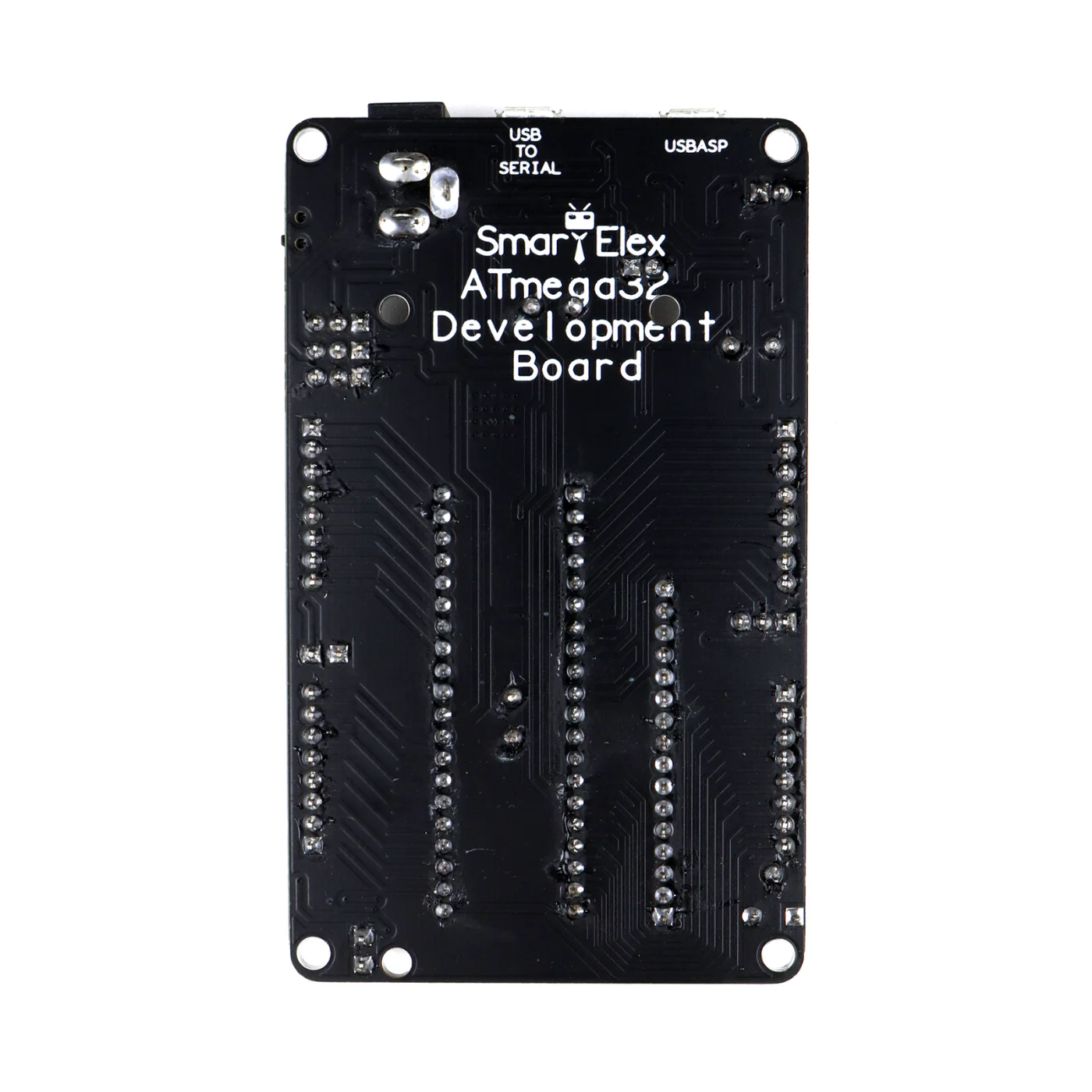

• Includes onboard USB to Serial (CH340) and Micro USB USBASP programmer.
• Built-in 5V voltage regulator (78M05) with power ON/OFF switch.
• Features 12 MHz crystal oscillator for stable performance.
• Onboard LED indicators and user switches for testing and debugging.

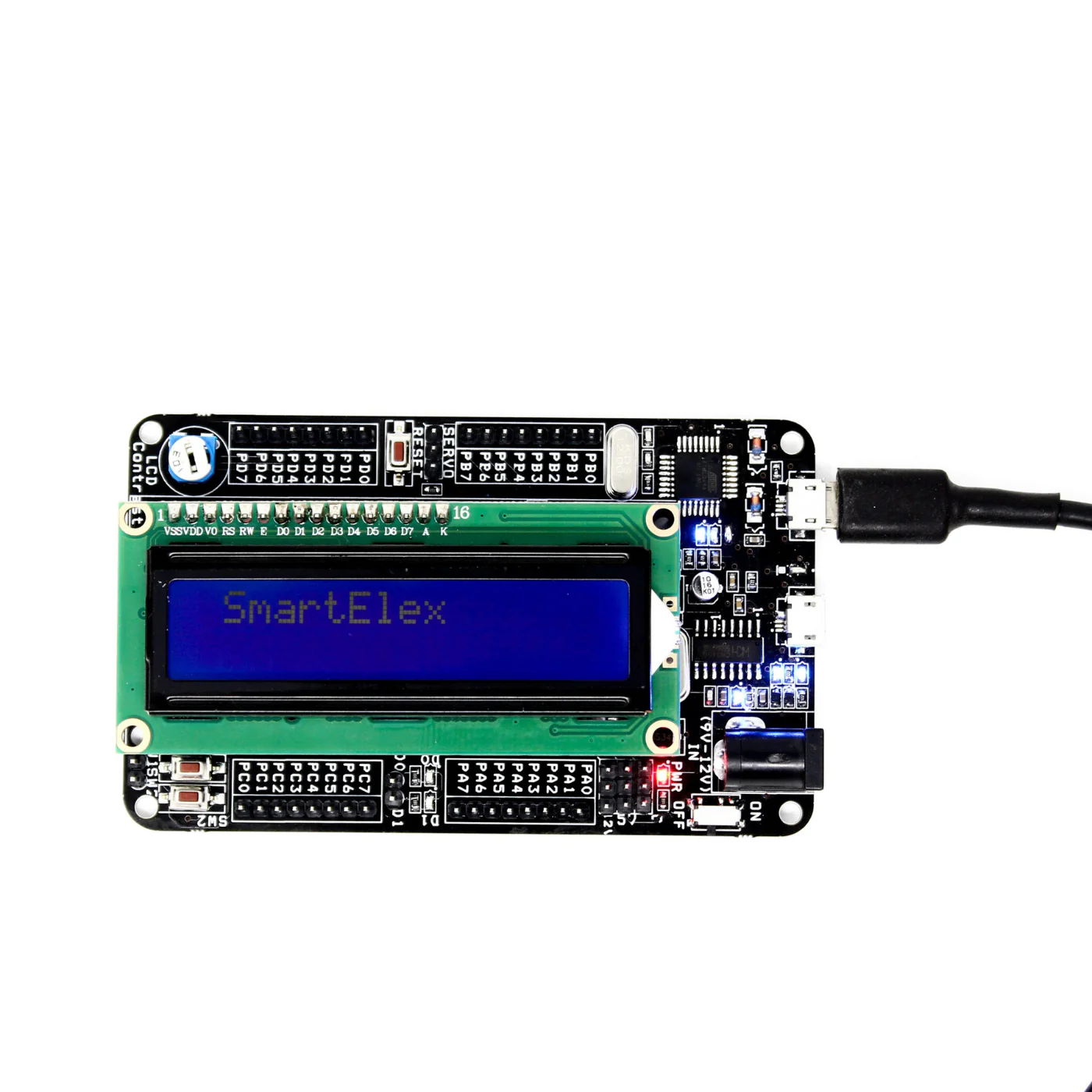

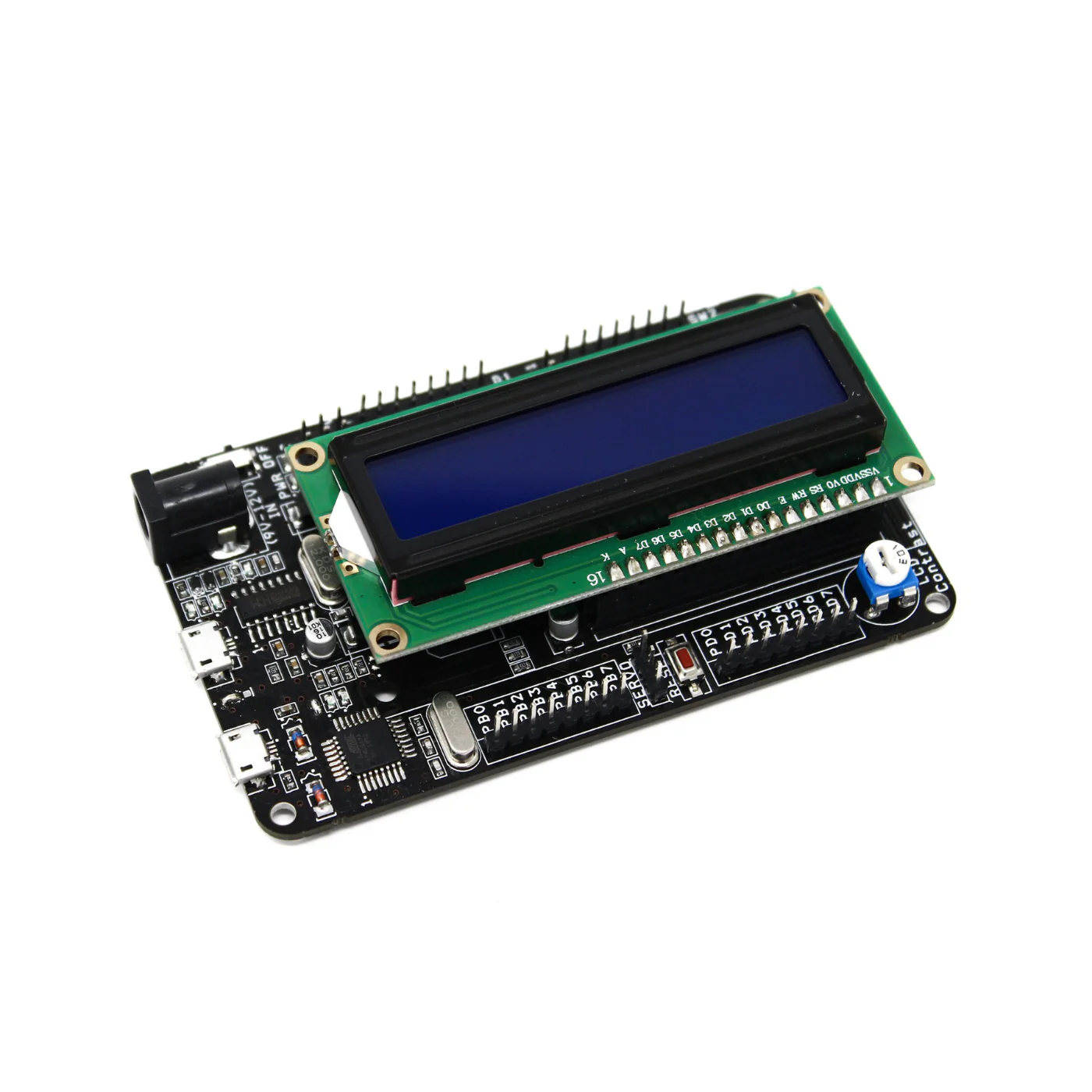

• 16x2 LCD connector for display interfacing.

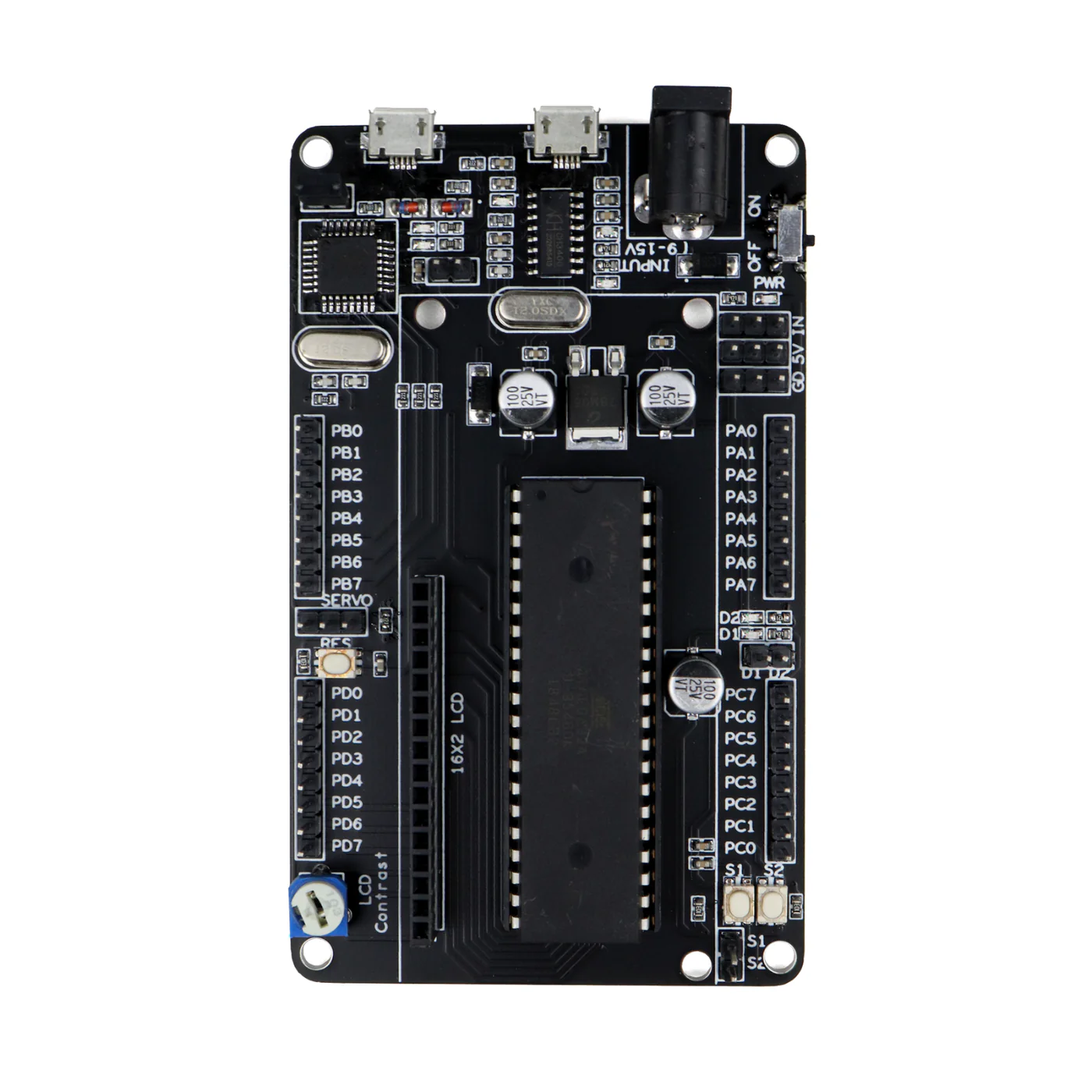

• Port extensions with detailed pin labeling for easy access.
• 12V, 5V, and GND bus lines for connecting external peripherals.
