TB6612FNG Dual DC Motor Driver
TB6612FNG Dual DC Motor Driver
The Motor Driver TB6612FNG Module can control up to two DC motors at 1.2A constant current (3.2A peak). The motor can be controlled by two input signals (IN1 and IN2) in one of four function modes: CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be controlled independently, and the speed of each motor is controlled by a PWM input signal with a frequency range of up to 100kHz. To remove the motor from standby mode, pull the STBY pin high.
The logic supply voltage (VCC) can range from 2.7 to 5.5VDC, while the motor supply (VM) has a maximum voltage of 15VDC. The maximum output current per channel is 1.2A. (or up to 3.2A for a short, single pulse).

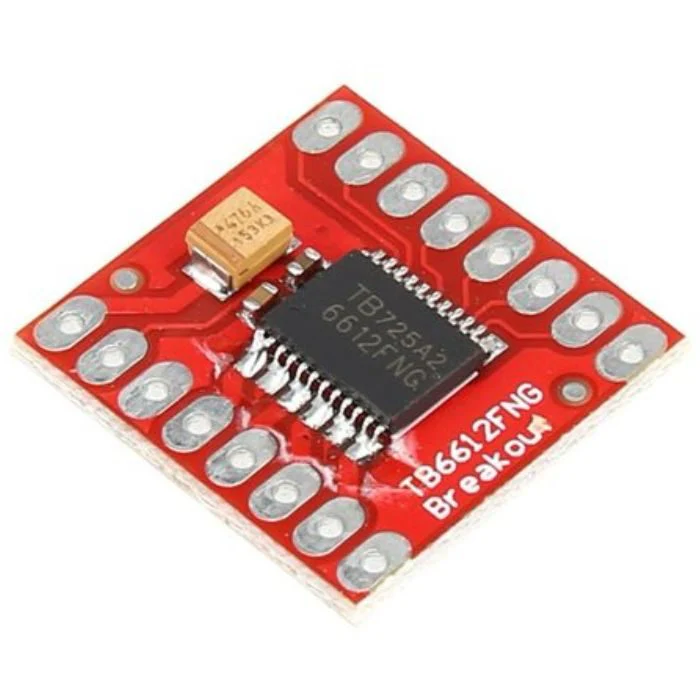

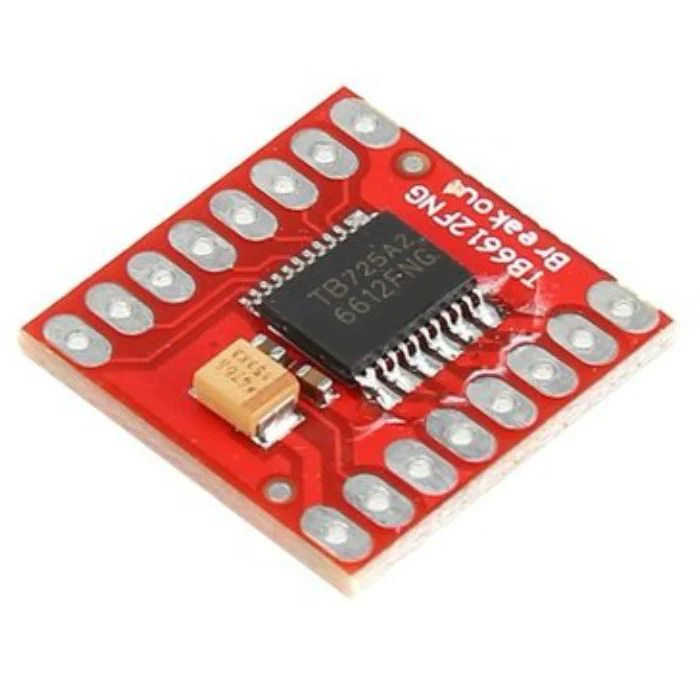

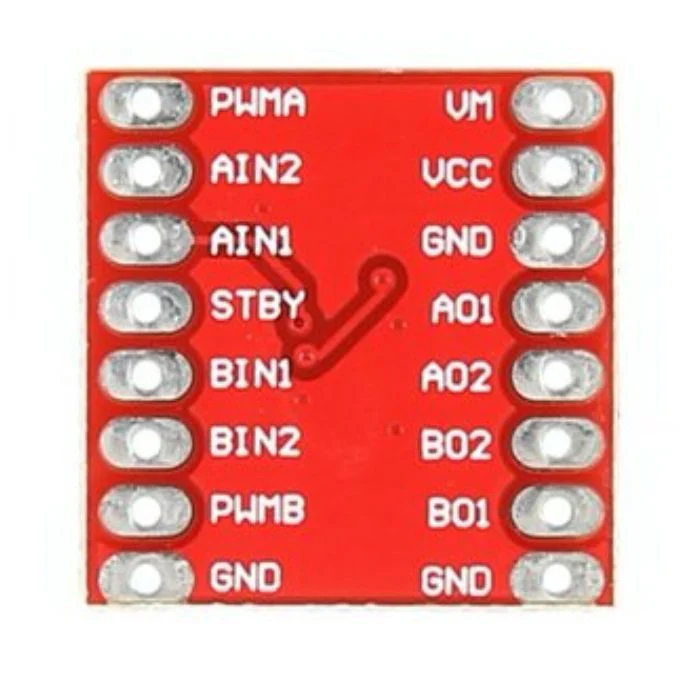

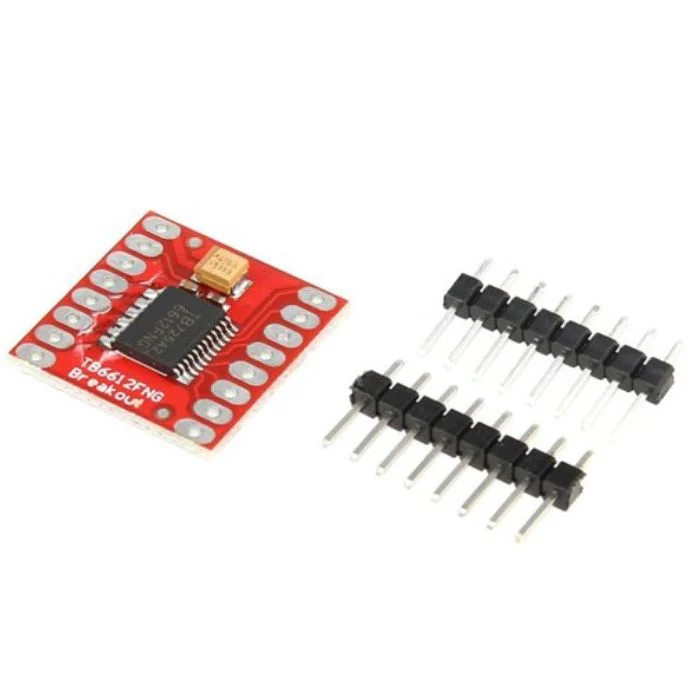

All components are installed on the board as shown. On both supply lines, decoupling capacitors are installed. The TB6612FNG has all of its pins broken out to two 0.1?? pitch headers, with input pins on one side and output pins on the other.
Features:
- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1? spaced pins
- Filtering capacitors on both supply lines
Original: $1.73
-70%$1.73
$0.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TB6612FNG Dual DC Motor Driver
The Motor Driver TB6612FNG Module can control up to two DC motors at 1.2A constant current (3.2A peak). The motor can be controlled by two input signals (IN1 and IN2) in one of four function modes: CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be controlled independently, and the speed of each motor is controlled by a PWM input signal with a frequency range of up to 100kHz. To remove the motor from standby mode, pull the STBY pin high.
The logic supply voltage (VCC) can range from 2.7 to 5.5VDC, while the motor supply (VM) has a maximum voltage of 15VDC. The maximum output current per channel is 1.2A. (or up to 3.2A for a short, single pulse).
All components are installed on the board as shown. On both supply lines, decoupling capacitors are installed. The TB6612FNG has all of its pins broken out to two 0.1?? pitch headers, with input pins on one side and output pins on the other.
Features:
- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1? spaced pins
- Filtering capacitors on both supply lines
